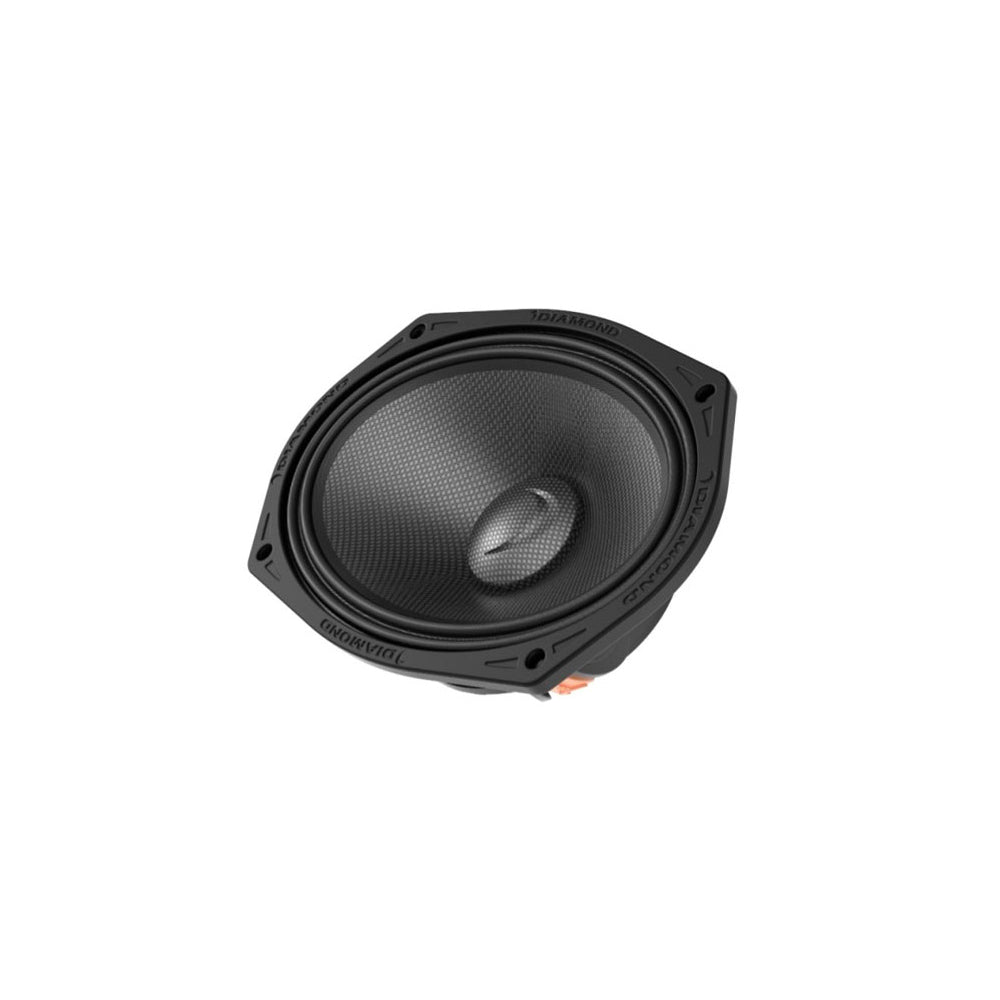

Diamond Audio MS694NEOLK 14+ Harley Davidson Speaker Cut in Lid Kit - Premium Sound Upgrade for Motorcycles, Perfect for Harley Touring Models & Custom Bike Builds

Features:

• Harley Davidson ® 14+ Cit in Lid Kit
• Includes .5” 6” x 9” Spacer Ring
• Includes MS69NEO Motor Sports 6” x 9” Marine Grade Speaker
• Includes Plug-n-Play Wire Harness W/ DLED Wiring

Specifications:

• Speaker Size: 6"x9"
• Description: 14+ Harley Davidson Cut in Lid Kit - MS694NEOLK
• Nominal Impedance (ohms): 4Ω
• RMS Power Rating: 350W
• Max Power Rating: 700W
• Voice Coil Diameter (inch/mm): 2" (50.8mm)
• Power Handling (RMS/Peak): 350W/700W
• SPL (db): 96
• Re (Ω)[series]: 3.2
• Qms: 9.971
• Qes: 0.558
• Qts: 0.528
• Fs-Free Air Resonance (Hz): 90Hz
• Vas (Liter): 10.7
• Cms (mm/N): 0.177
• Mms (g): 17.5
• Sd (cm²): 0.0207
• BL (T*M): 7.785
• Xmax - Inch(mm): 1.2
• Pwr (W) NOM/MAX: 350W/700W
• Mounting Diameter (inch/mm): 8.583"X5.748"(218mmX146mm)
• Mounting Depth: 3.091"(78.5mm)
• Total Depth: 3.433"(87.2mm)
