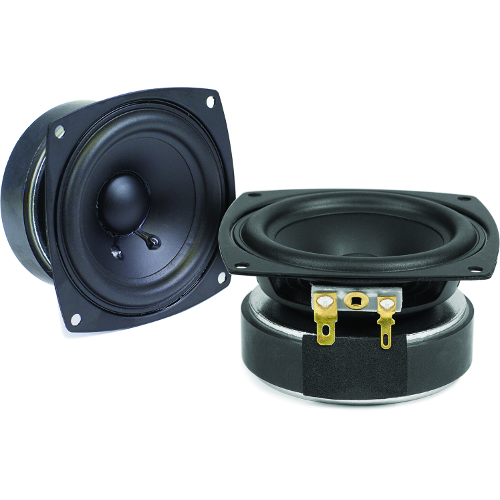

Eminence Alpha 3 32 Ohm 30W Full Range Line Array Speaker - Professional Audio for Live Performances, DJ Sets & Studio Monitoring
$18.34
$33.35
-45% OFF
Free shipping on all orders over $50
7-15 days international
9 people viewing this product right now!
30-day free returns
Secure checkout
37132318
Guranteed safe checkout
Description
A truly versatile compact full-range driver perfectly suited for tight fitting pro audio line array and column array applications. An 8.3 oz ferrite magnet used in conjunction with an internal neodymium bucking magnet increases the sensitivity and extends the response out to 20kHz. The highly pressed cone sandwiches paper with a layer of water-resistant polypropylene for increased stiffness and lower distortion.
Pro Tip: Wire eight Alpha 3 - 32Ω together in parallel for a total impedance of 4 ohm line array
| Specification | |
| Nominal Basket Diameter | 3", 76 mm |
| Nominal Impedance* | 32 Ω |
| Power Rating* | |
| Program Power | 60 W |
| Watts | 30 W |
| Resonance | 117 Hz |
| Usable Frequency Range | 150 Hz - 20 kHz |
| Sensitivity* | 88.2 dB |
| Magnet Weight | 8 oz. |
| Gap Height | 0.08", 2 mm |
| Voice Coil Diameter | 0.79", 20 mm |
| Thiele & Small Parameters | |
| Resonant Frequency (fs) | 117 Hz |
| DC Resistance (Re) | 22.4 Ω |
| Coil Inductance (Le) | 0.23m H |
| Mechanical Q (Qms) | 5.87 |
| Electromagnetic Q (Qes) | 0.85 |
| Total Q (Qts) | 0.74 |
| Compliance Equivalent Volume (Vas) | 0.98 liters / 0.04 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 7.4 cc |
| Mechanical Compliance of Suspension (Cms) | 0.86 mm/N |
| BL Product (BL) | 6.46 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 2 grams |
| Efficiency Bandwidth Product (EBP) | 138 |
| Maximum Linear Excursion (Xmax) | 2.6 mm |
| Surface Area of Cone (Sd) | 28.6 cm2 |
| Maximum Mechanical Limit (Xlim) | 4 mm |
| Mounting Information | |
| Recommended Enclosure Volume | |
| Sealed | 1.13-1.7 liters / 0.04-0.06 cu.ft. |
| Vented | 1.13-1.98 liters / 0.04-0.07 cu.ft. |
| Driver Volume Displaced | 0.005 cu.ft. / 0.13 liters |
| Major Diameter | 3.98", 101.1 mm |
| Flat to Flat Diameter | 3.24", 82.3 mm |
| Baffle Hole Diameter | 3.04", 77.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.16", 4.1mm |
| Mounting Holes B.C.D. | 3.63", 92.1mm |
| Depth | 1.76", 44.6 mm |
| Net Weight | 0.9 lbs, 0.41 kg |
| Shipping Weight | 1.1 lbs, 0.5 kgs |
| Materials of Construction | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented / Flux source cap |
| Basket Materials | Pressed steel |
| Cone Composition | Paper / Poly sandwich cone |
| Cone Edge Composition | Poly cone edge |
| Dust Cap Composition | Poly dust cap |
