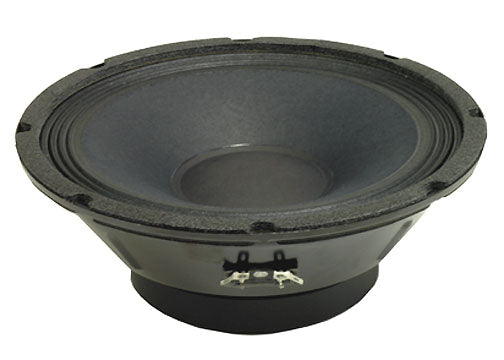

Eminence Beta 10CBMRA 8 Ohm 200W Professional Sealed Basket Woofer Speaker - Perfect for PA Systems, DJ Equipment, and Live Sound Reinforcement
$103.39
$187.99
-45% OFF
Free shipping on all orders over $50
7-15 days international
23 people viewing this product right now!
30-day free returns
Secure checkout
25197902
Guranteed safe checkout
Description
Recommended for high power pro audio and car audio mid-range applications. Sealed basket affords this speaker cabinet independence.
| Specification | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 400 W |
| Watts | 200 W |
| Resonance | 326 Hz |
| Usable Frequency Range | 300 Hz - 4 kHz |
| Sensitivity* | 99.6 dB |
| Magnet Weight | 34 oz. |
| Gap Height | 0.31", 8 mm |
| Voice Coil Diameter | 2", 51 mm |
| Thiele & Small Parameters | |
| Resonant Frequency (fs) | 326 Hz |
| DC Resistance (Re) | 5.68 Ω |
| Coil Inductance (Le) | 0.48m H |
| Mechanical Q (Qms) | 7.14 |
| Electromagnetic Q (Qes) | 2.27 |
| Total Q (Qts) | 1.73 |
| Compliance Equivalent Volume (Vas) | 1.7 liters / 0.06 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 52.5 cc |
| Mechanical Compliance of Suspension (Cms) | 0.01 mm/N |
| BL Product (BL) | 9.5 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 18 grams |
| Efficiency Bandwidth Product (EBP) | 143 |
| Maximum Linear Excursion (Xmax) | 1.5 mm |
| Surface Area of Cone (Sd) | 350.1 cm2 |
| Maximum Mechanical Limit (Xlim) | 3 mm |
| Mounting Information | |
| Recommended Enclosure Volume | |
| Sealed | N/a |
| Vented | - liters / - cu.ft. |
| Driver Volume Displaced | 0.039 cu.ft. / 1.1 liters |
| Overall Diameter | 10.09", 256.3 mm |
| Baffle Hole Diameter | 9.18", 233.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 9.66", 245.4mm |
| Depth | 3.56", 90.4 mm |
| Net Weight | 7.3 lbs, 3.31 kg |
| Shipping Weight | 8.3 lbs, 3.76 kgs |
| Materials of Construction | |
| Coil Construction | Aluminum voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-Vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition paper dust cap |
