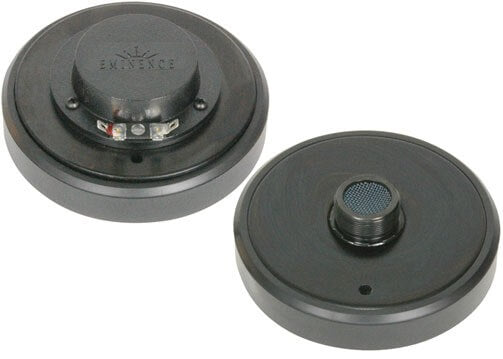

Eminence PSD 2002S 8 Ohm 80W Professional Screw-On Compression Driver for PA Systems, Live Sound & Studio Monitors
$79.69
$144.9
-45% OFF
Free shipping on all orders over $50
7-15 days international
9 people viewing this product right now!
30-day free returns
Secure checkout
99245004
Guranteed safe checkout
Description
High frequency 1" throat screw on compression driver.
For replacement diaphragm use:
| Specification | |
| Throat Size | 1", 25.4mm |
| Nominal Impedance* | 8Ω |
| Minimum Impedance | 7.9 ohm @ 2.9 kHz |
| Power Rating** | 80 W (AES) |
| Resonance | 0.54kHz |
| Usable Frequency Range | 1200Hz-20kHz |
| Recommended Crossover | 1.2 kHz / 12 dBkHz |
| Sensitivity*** | 105.1 |
| Magnet Material | Ferrite |
| Magnet Weight | 34oz, 0.96kg |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former | Polyimide |
| Diaphragm Material | Titanium |
| DC Resistance (Re) | 6.1Ω |
| Mounting Information | |
| Overall Diameter | 5.25", 133.4mm |
| Driver Volume Displaced | 0.01 cu.ft., 0.5 liters |
| Depth | 2.8", 71.1mm |
| Weight | 4.7 lbs, 2.1 kg |
| Mounting Thread | 1 3/8 in. 18 ext. |
| Mounting Holes Diameter | N/A |
| Mounting Holes B.C.D. | N/A |
