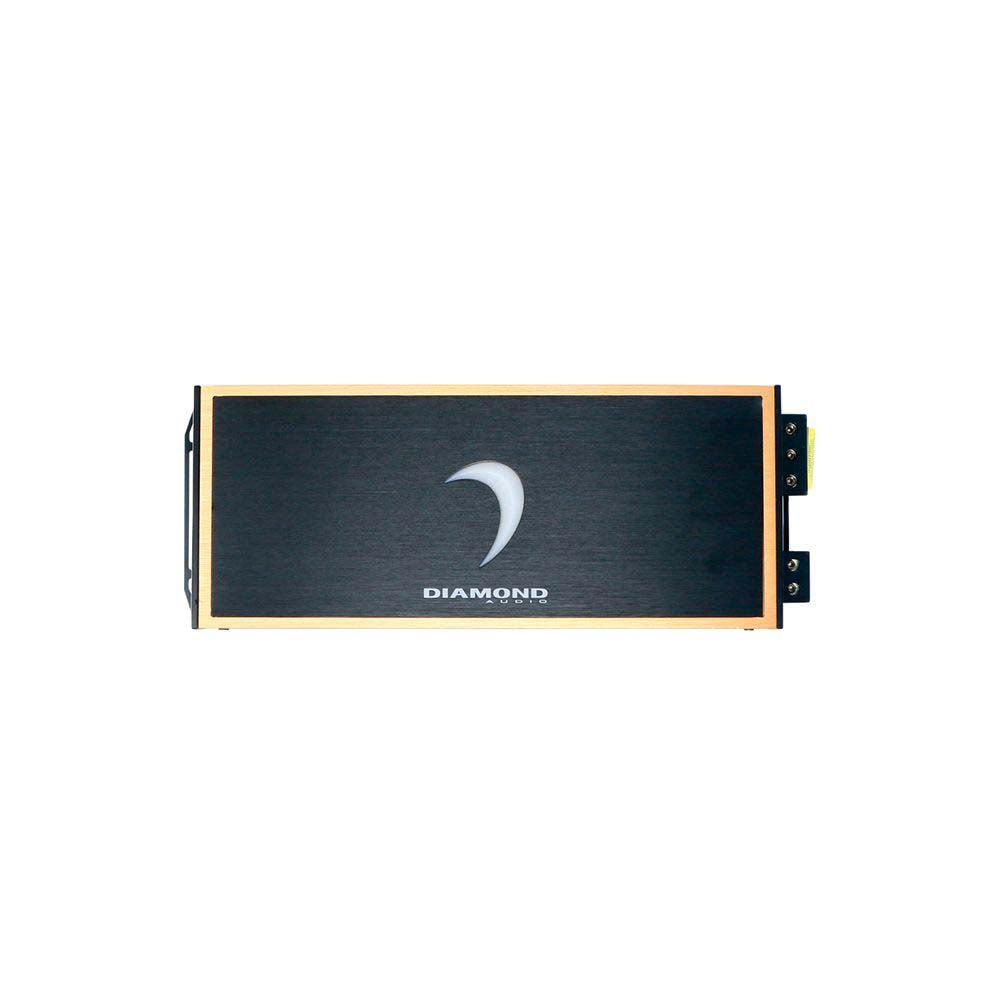

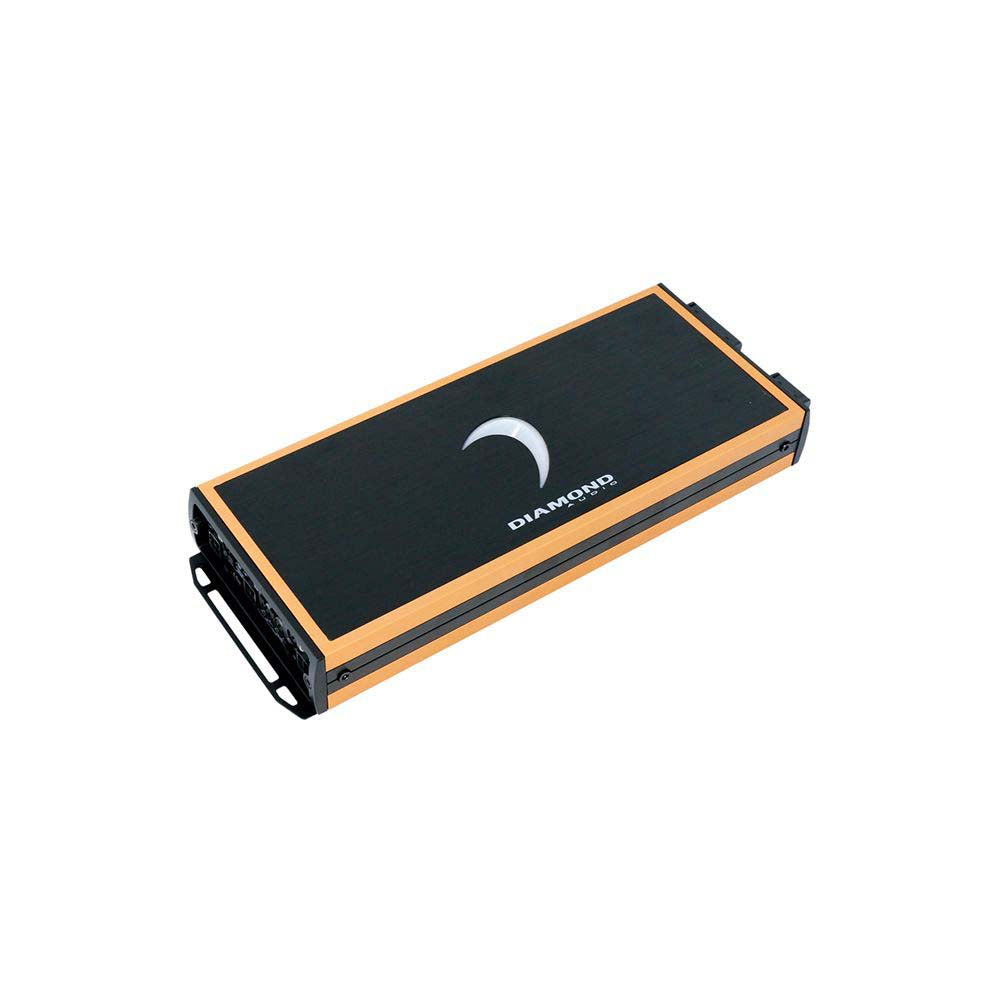

Diamond Audio MICRO85U 950W RMS 5-Channel Class D Car Amplifier - High Power Full Range Audio System for Cars, Trucks & SUVs | Perfect for Upgrading Your Vehicle Sound System or Adding Subwoofers

Features:

• Class D 2 ohms Stable 5-Channel Amplifier
• RMS Power Rating:
  • 4 ohms: 200 watts x 1 channel + 80 watts x 4 channel
  • 2 ohms: 350 watts x 1 channel + 150 watts x 4 channel
  • Bridged: 300 watts x 2 channel @ 4 ohms + 150 watts x 4 channel @ 2 ohms
• Total power output: 950 watts
• Pulse Width Modulated MOSFET power supply
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Input sensitivity:
  • Low level: 200mV - 10 volts
• Frequency Response: 10 - 33 Hz
• Total Harmonic Distortion (THD): 0.5%
• Signal to Noise Ratio: -85 dB
• Variable high-pass filter: 40 - 400 Hz, 24 dB/octave
• Variable low-pass filter: 40 - 400 Hz, 24 dB/octave
• Fuse Rating: 60
• 8 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 4.02" W x 10.45" L x 1.4" H

Specifications:

• Amplifier Class: D
• Number of Channels: 5
• Total Peak Power Output: 1900 watts
• Total RMS Power Output: 950 watts
• Maximum Input Gauge Size: 8 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• Frequency Response: 10 - 33 Hz
• THD at Rated RMS Power: 0.5%
• Speaker Level Inputs: Yes
• Built-in Crossover: Low-Pass (LP), High-Pass (HP)
• High-Pass Crossover Frequency: 40 - 400 Hz
• Low-Pass Crossover Frequency: 40 - 400 Hz
• Signal-to-Noise Ratio: -85 dB
• Remote bass/level controller: No
• Total Fuse Rating: 60
• Low-Level Input Sensitivity: 200mV - 10 volts
