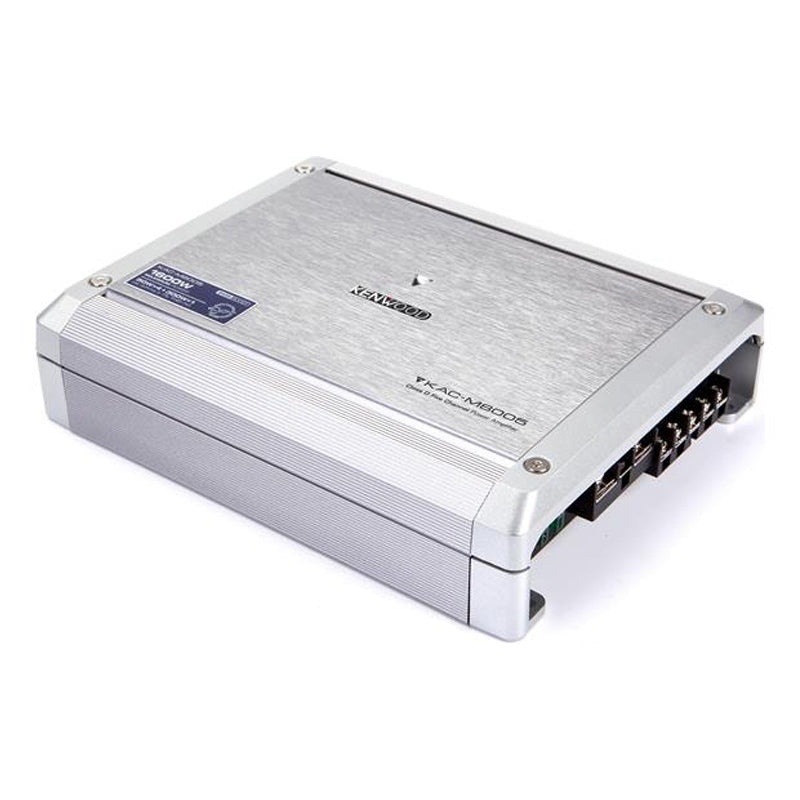

Kenwood KAC M8005 Marine Digital Amplifier - 800W 4-Channel Class D Car Audio Amp for Boats & Vehicles | Perfect for Marine, Off-Road & Car Audio Systems

Features:

• Kenwood KAC-M8005
• Class-A/B 2-Ohm Stable 5-Channel Marine Amplifier
• RMS Power Rating:
• 4 ohms: 50 watts x 4 chan. + 300 watts x 1 chan.
• 2 ohms: 75 watts x 4 chan. + 500 watts x 1 chan.
• Bridged, 4 ohms: 150 watts x 2 chan. + N/A
• Total power output: 1600 watts
• CEA-2006 Compliant Amplifier
• Pulse Width Modulated MOSFET power supply
• Signal Sensing Turn-on
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Extruded Aluminum Heat Sink Design
• Input sensitivity:
• Low level: 0.2V-5V
• High level: 4V-12V
• Frequency Response: 20 - 20000 Hz
• Total Harmonic Distortion (THD): <1%
• Signal to Noise Ration: 100 dB
• Variable high-pass filter: 50 - 200 Hz, 12dB/octave
• Variable low-pass filter: 50 - 200 Hz, 24 dB/octave (sub)
• Variable Bass Boost: 0 to +18 dB bass boost at 40 Hz
• Fuse Rating: 30 A x 3

Specifications:

Power Specifications - Full Range Channels:

• RMS Power @ 4 ohms: 50 watts x 4 channels
• RMS Power @ 2 ohms: 75 watts x 4 channels
• Bridged RMS Power: 150 watts x 2 channels

Power Specifications - Subwoofer Channel:

• RMS Power @ 4 ohms: 300 watts x 1 channels
• RMS Power @ 2 ohms: 500 watts x 1 channels
• RMS Power @ 1 ohm: N/A

Amplifier Specifications:

• Amplifier Class: AB
• Number of Channels: 5
• Total Peak Power Output: 1600 watts
• Total RMS Power Output: 800 watts
• THD at Rated RMS Power: <1%
• Built-in Crossover: Low-Pass (LP), High-Pass (HP)
• High-Pass Crossover Frequency: 50 - 200 Hz
• Low-Pass Crossover Frequency: 50 - 200 Hz
• Signal-to-Noise Ratio: 100 dB
• Bass Boost: 0 - 18 dB
• Fuse Rating: 30A x 3
