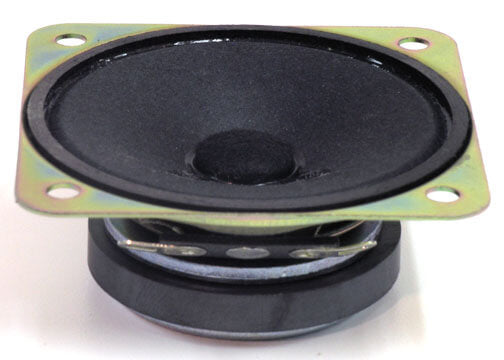

Misco JC8PA 45 Ohm Replacement Speaker - High-Quality Audio Replacement for Home Theater, Car Audio & DIY Speaker Projects
$16.05
$29.19
-45% OFF
Free shipping on all orders over $50
7-15 days international
25 people viewing this product right now!
30-day free returns
Secure checkout
92770975
Guranteed safe checkout
Description
8.0" paper edge with paper cone woofer.
| SPECIFICATIONS Nominal Diameter: 8.0", 203mm Nominal Impedance: 45 ohms Power: 15 W rms Freq. Response: 40 Hz-14 kHz Sensitivity: 97 db 1w/1m Magnet Weight: 10 oz, 284 grams Voice Coil Diameter: 1.0", 25mm MOUNTING INFORMATION Overall Diameter: 8.0", 203mm Baffle Hole Diameter: 7.1", 180mm Number of Mounting Holes: 8 Mounting Hole BCD: 7.63", 194mm Depth: 2.76", 70mm | T/S PARAMETERS Fs: 90.0 Hz Re: 35.5 ohms Qms: 4.6 Qes: 2.2 Qts: 1.5 Xmax: 2.9mm CONSTRUCTION -Pressed steel basket -Paper cone with paper cone edge -Ferrite magnet with paper dust cap |
