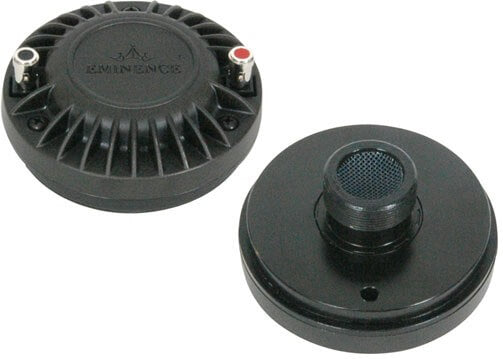

Eminence NSD 2005S 8 Ohm 50W Screw-On Professional Audio Compression Driver for PA Systems & Live Sound Applications
$93.58
$170.16
-45% OFF
Free shipping on all orders over $50
7-15 days international
23 people viewing this product right now!
30-day free returns
Secure checkout
92159556
Guranteed safe checkout
Description
High frequency 1" throat screw on compression driver.
SPECIFICATIONSThroat Diameter: 1", 25.4 mm
Nominal Impedance: 8 ohms
Power: 50W rms @ 1.5 kHz
Fs: 578 Hz
Re: 6.8 ohms
Freq. Response: 1.5kHz- 20kHz
Recommended Min. X-over: 1.5kHz@12db/octave
Sensitivity: 108.4db 1w/1m
Magnet Weight: 4.6 oz, 130 grams
Voice Coil Diameter: 2", 50.8 mm
Voice Coil Former Material: Polymide
Diaphragm Material: Titanium
MOUNTING INFORMATION
Mounting Style: Screw on
Snout Thread: 1-3/8" x 18UNEF
OVERALL DIMENSIONS
Outside Diameter: 3.87", 98.3 mm
Depth: 1.75", 44.5 mm
Weight: 2 lbs, 909 grams
