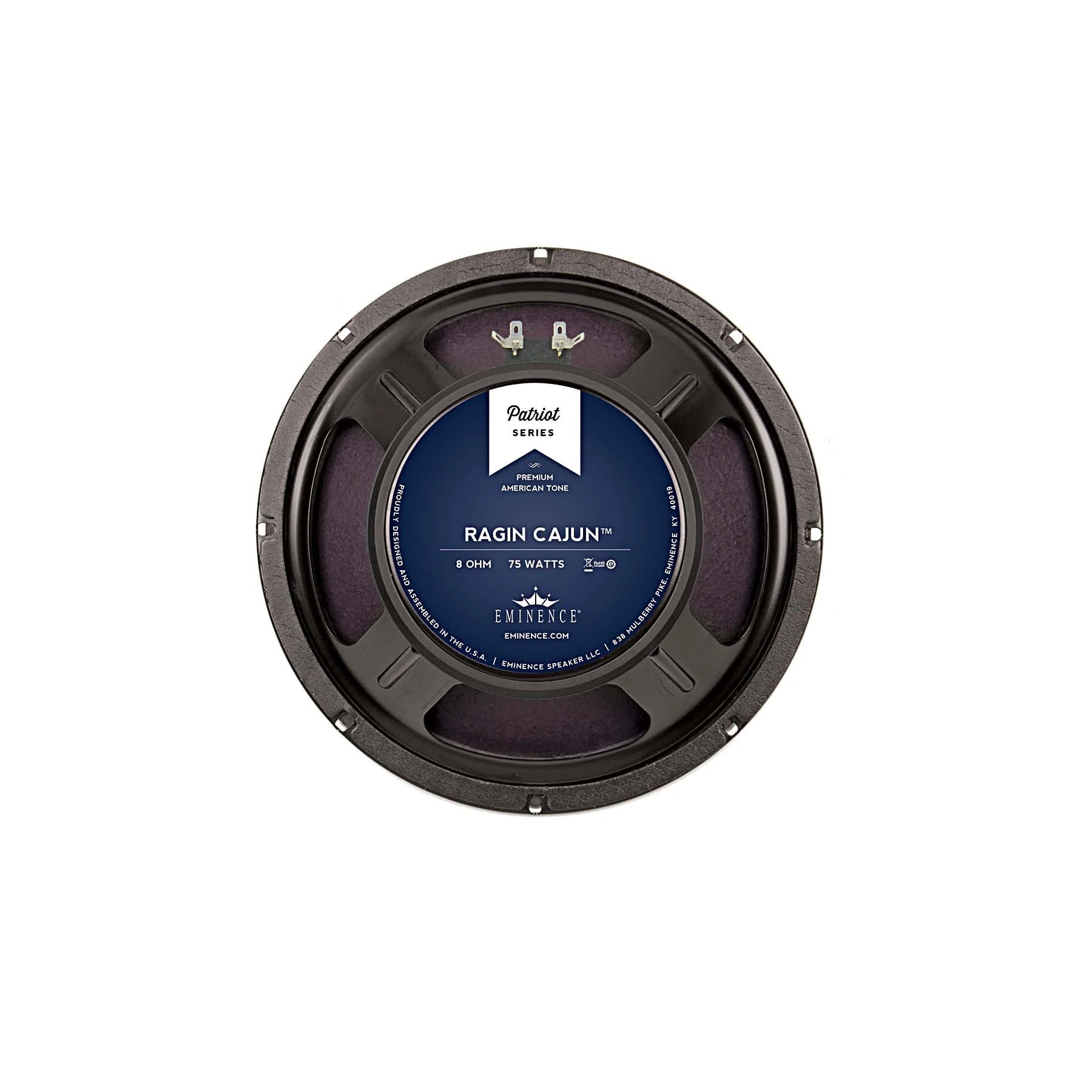

Eminence Ragin Cajun 8 Ohm 10-Inch 75W Guitar Speaker for American Tone | Perfect for Blues, Rock & Vintage Amp Upgrades
$101.2
$184
-45% OFF
Free shipping on all orders over $50
7-15 days international
7 people viewing this product right now!
30-day free returns
Secure checkout
87521835
Guranteed safe checkout
Description
The Eminence Ragin Cajun guitar speaker puts you in control to be heard loud and clear. Very loud, touch sensitive and responsive with nice bell sounding top end and a little bite.
A very hot 10" American guitar speaker with rockin' blues tone.
Colouration: Very loud touch-sensitive and responsive with bell-sounding top end and a little bite.
Genre: American Rock, Blues and Country.
| Specification | |
| Nominal Basket Diameter | 10", 254 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | N/A |
| Watts | 75 W |
| Resonance | 84 Hz |
| Usable Frequency Range | 80 Hz - 5 kHz |
| Sensitivity* | 100.5 dB |
| Magnet Weight | 30 oz. |
| Gap Height | 0.31", 7.9 mm |
| Voice Coil Diameter | 1.5", 38 mm |
| Thiele & Small Parameters | |
| Resonant Frequency (fs) | 84 Hz |
| DC Resistance (Re) | 7.01 Ω |
| Coil Inductance (Le) | 0.38m H |
| Mechanical Q (Qms) | 11.42 |
| Electromagnetic Q (Qes) | 0.54 |
| Total Q (Qts) | 0.51 |
| Compliance Equivalent Volume (Vas) | 34.1 liters / 1.2 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 17.6 cc |
| Mechanical Compliance of Suspension (Cms) | 0.18 mm/N |
| BL Product (BL) | 11.8 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 20 grams |
| Efficiency Bandwidth Product (EBP) | 156 |
| Maximum Linear Excursion (Xmax) | 0.48 mm |
| Surface Area of Cone (Sd) | 366.1 cm2 |
| Maximum Mechanical Limit (Xlim) | N/A |
| Mounting Information | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.039 cu.ft. / 1.1 liters |
| Overall Diameter | 10.11", 256.8 mm |
| Baffle Hole Diameter | 9.13", 231.9 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.23", 5.8mm |
| Mounting Holes B.C.D. | 9.6", 243.8mm |
| Depth | 3.8", 96.5 mm |
| Net Weight | 6.4 lbs, 2.9 kg |
| Shipping Weight | 8.2 lbs, 3.72 kgs |
| Materials of Construction | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Zurette dust cap |
