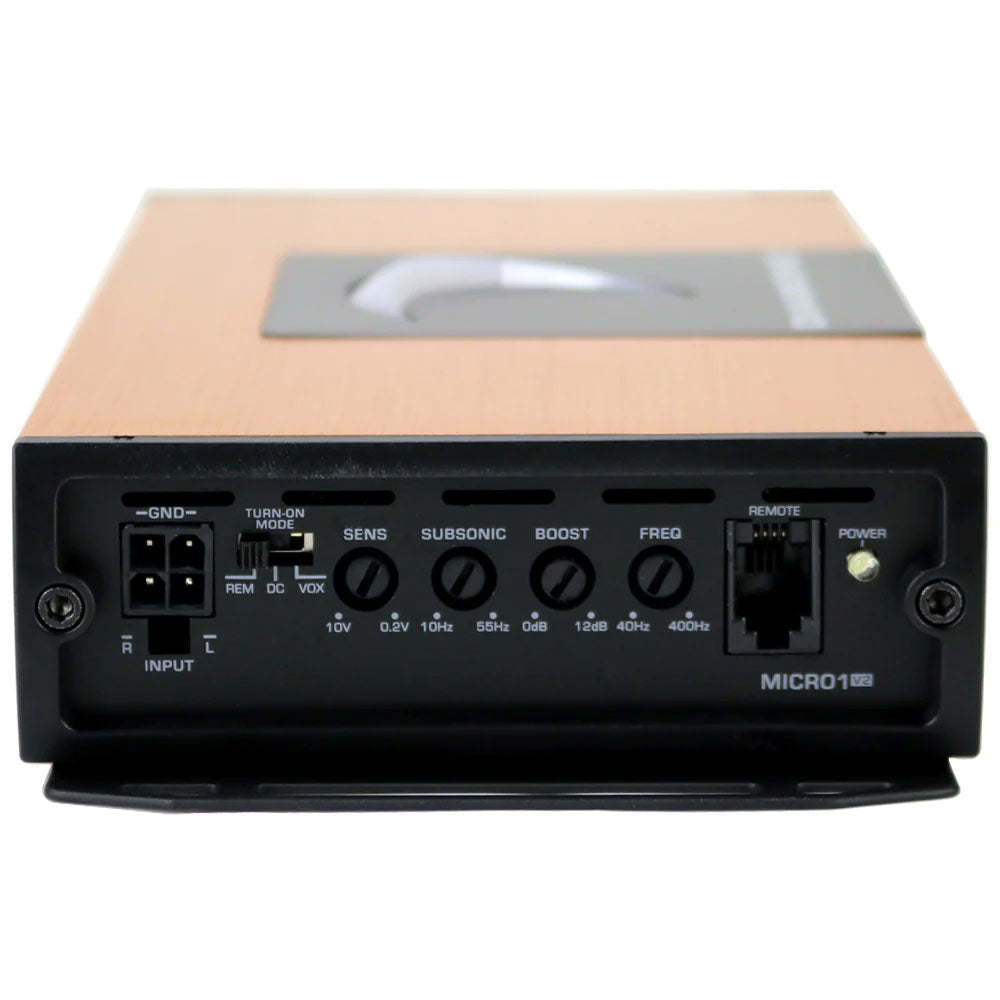

Diamond Audio MICRO1V2 500W RMS Monoblock Class D Car Amplifier - High Power Full Range Micro Amp for Car Audio System | Perfect for Subwoofers, Speakers & Enhanced Bass in Vehicles

Features:

• Monoblock Micro Class-D Amplifier
• Power Output:
• 175W RMS x 1 @ 4Ω
• 300W RMS x 1 @ 2Ω
• 500W RMS x 1 @ 1Ω

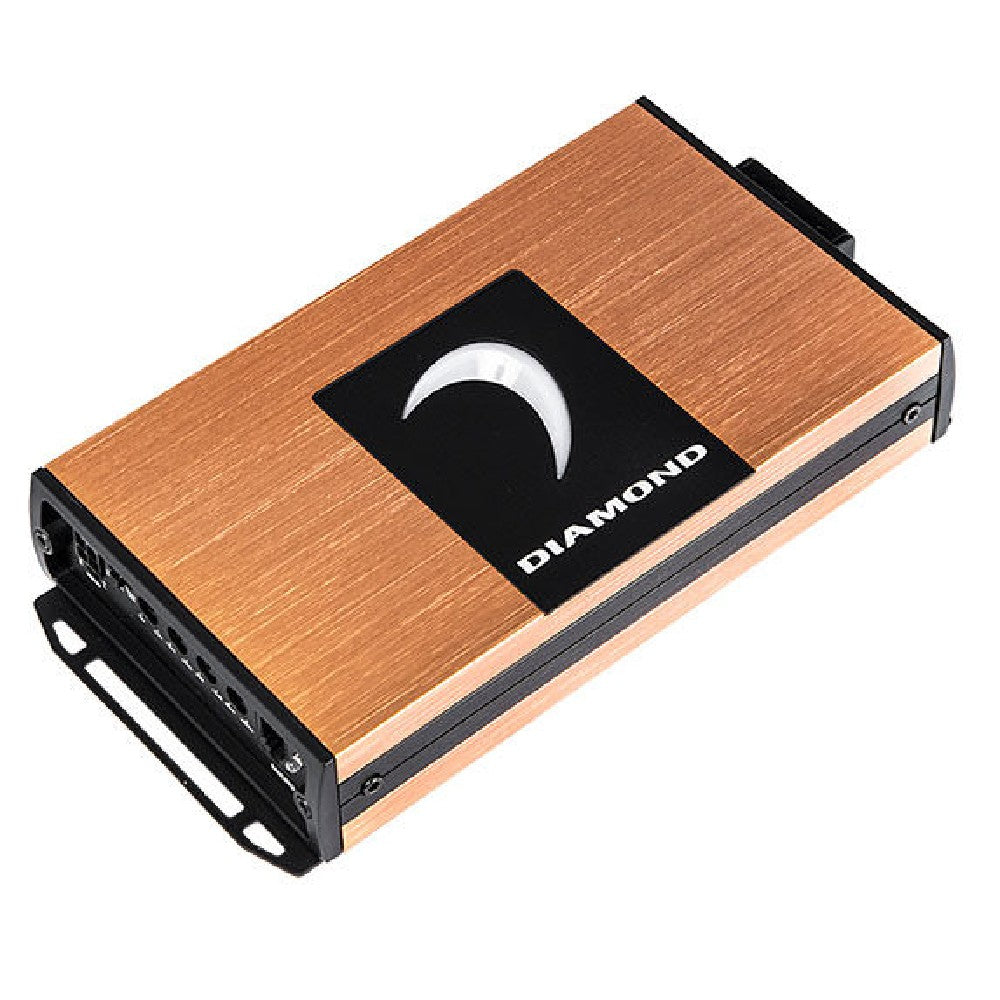

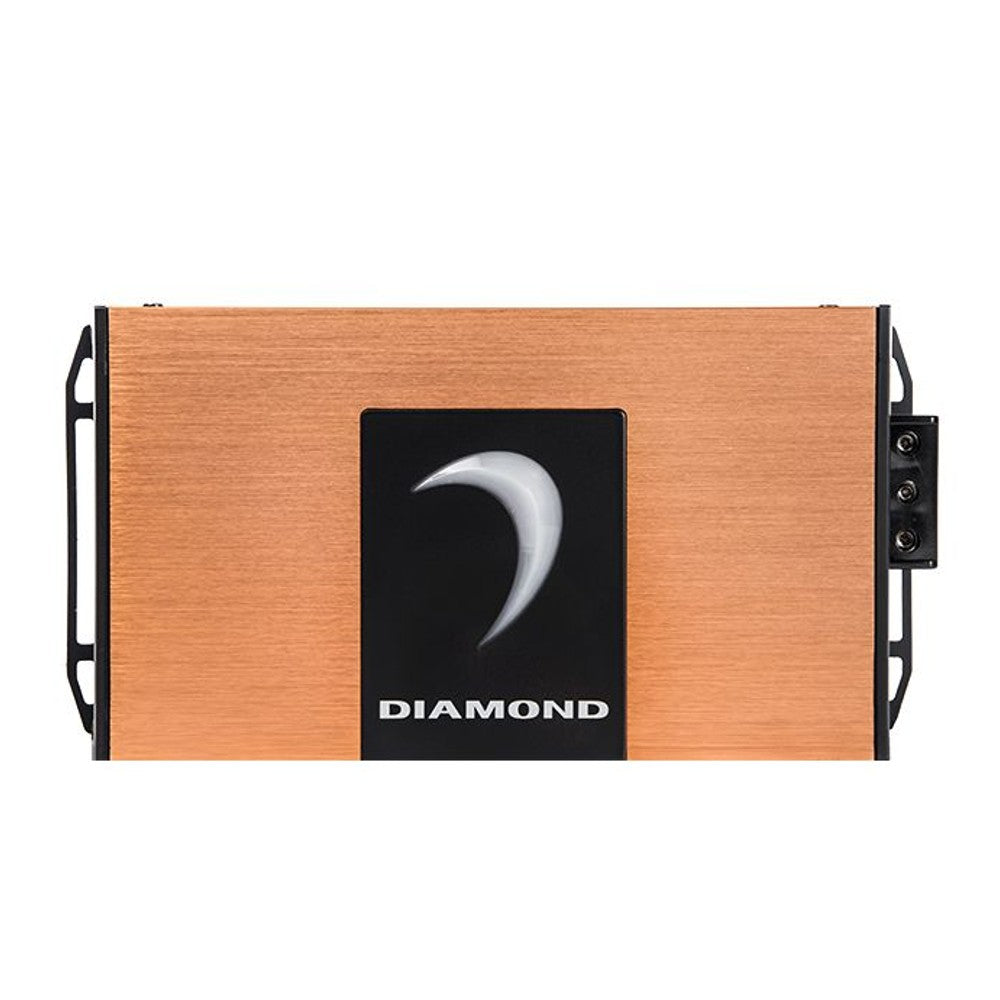

• Ultra-compact, high-density aluminum alloy chassis provides superior thermal stability
• Four layers, glass epoxy circuit board for enhanced performance and reliability
• Full Range Class D amplifier technology
• Balanced differential inputs for superior noise rejection

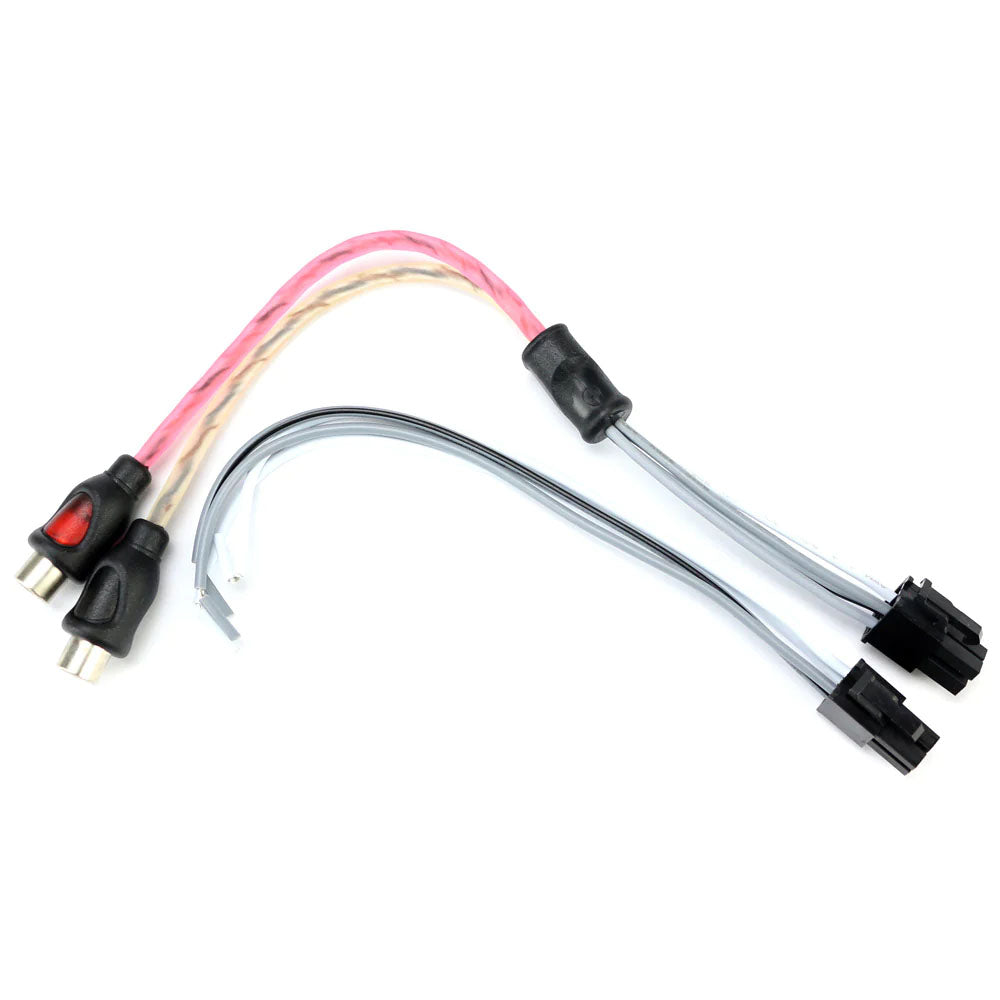

• Input sensitivity from 200mV to 10V accepts line (RCA) and Speaker level input

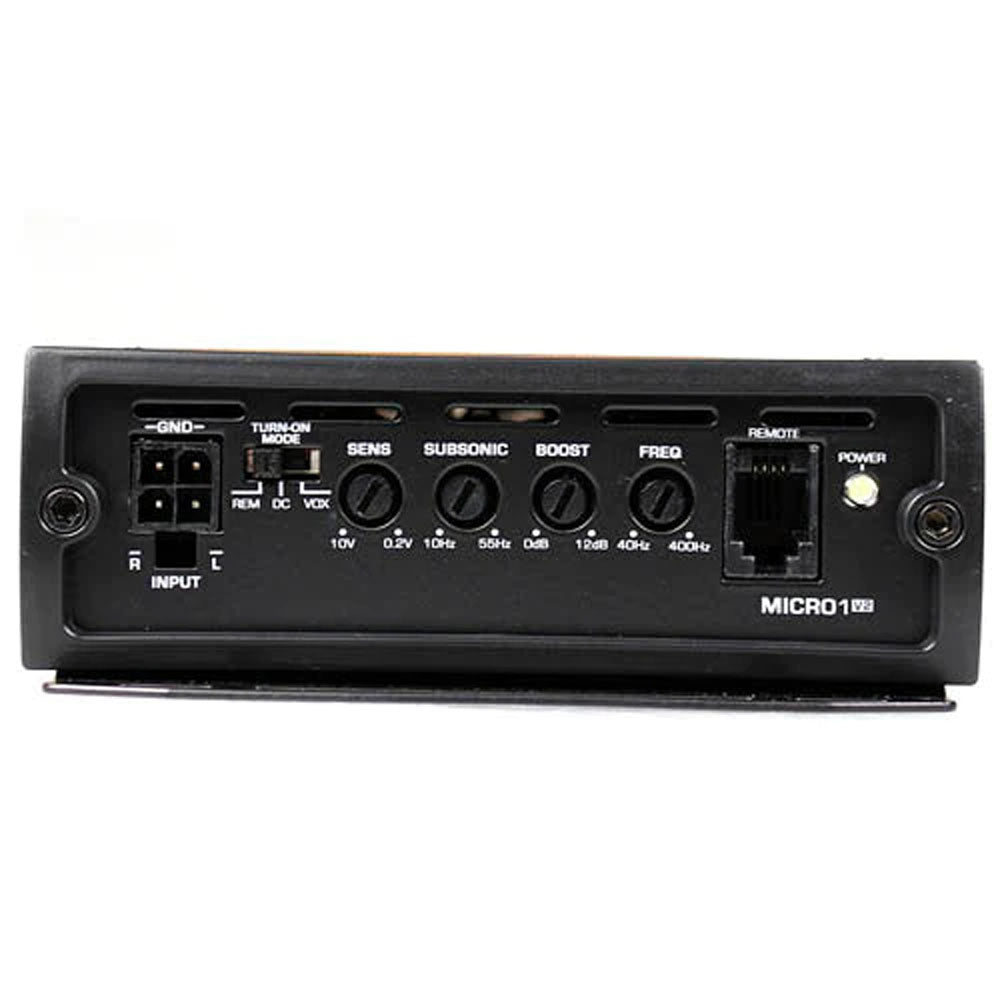

• Selectable auto-turn-on modes: Signal Sensing (VOX), 12V Remote (REM), and DC offset (DC)
• Fully variable, 12dB per octave, electronic crossover
• Variable 18dB per octave sub-sonic filter

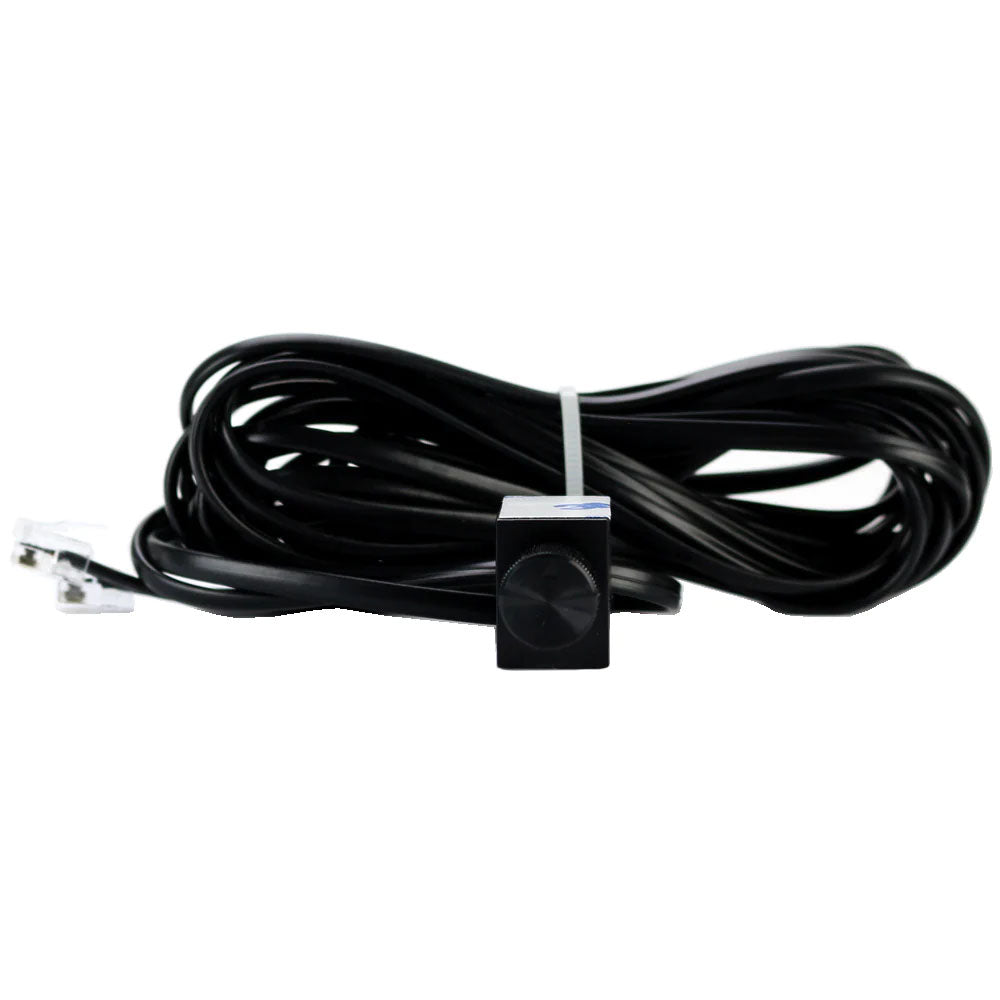

• Adjustable Bass EQ (45Hz: 0dB to +12dB) / remote level control included
• Illuminated logo
• THD: 0.5%
• S/N Ratio (A weighted @ 1W): -85dB
• Low Input Level: 200mV - 10.0V
• Bandwidth(-3dB): 10Hz - 350Hz
• Variable Low-Pass: 40Hz - 400Hz
• Variable Sub-Sonic: 10Hz - 55Hz

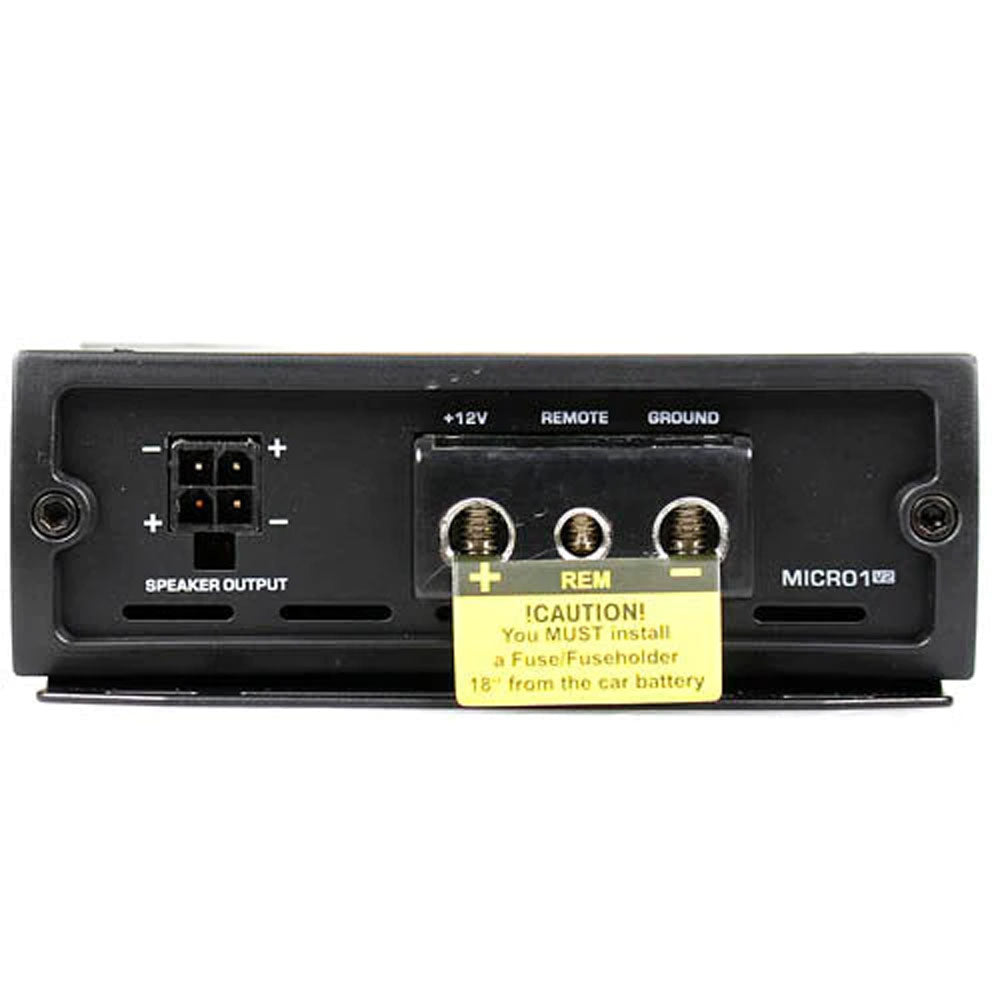

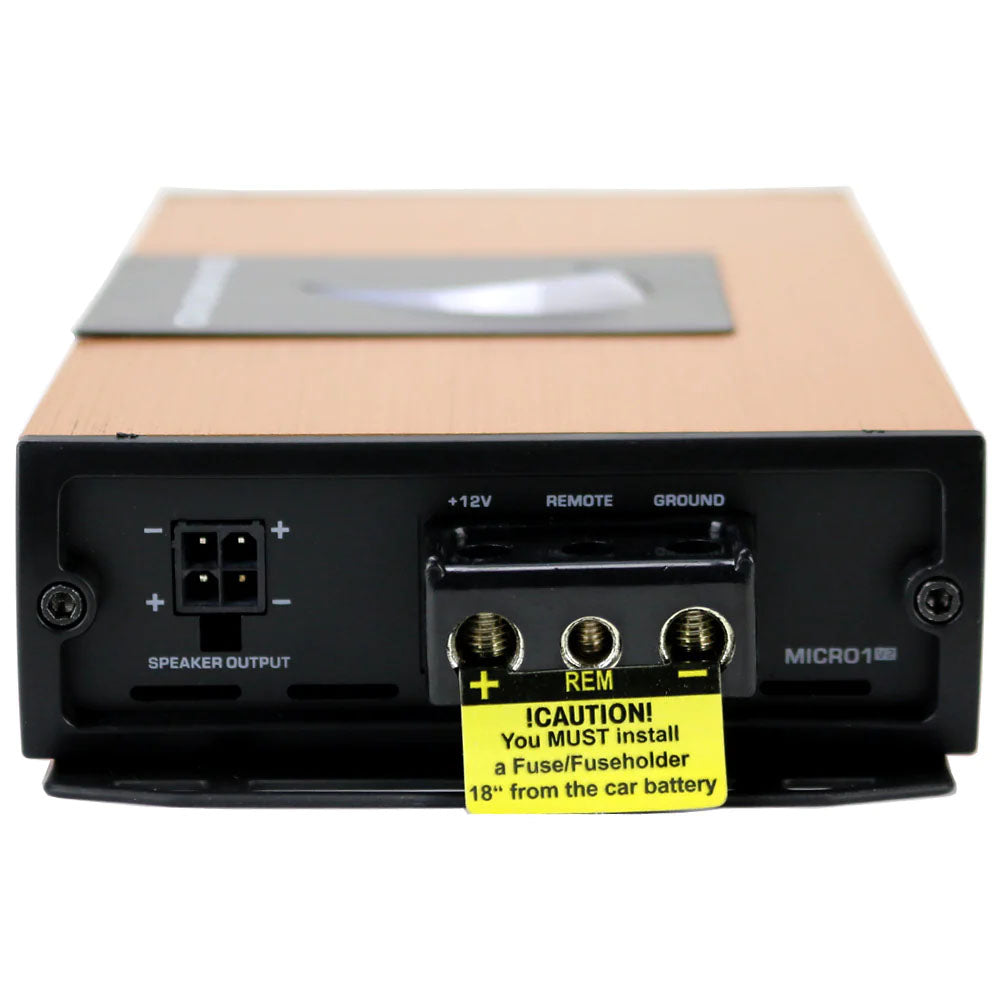

• Fuse Ratings - ATC: 25A
• Dimensions: 7.89"L x 4.0"W x 1.46"H
