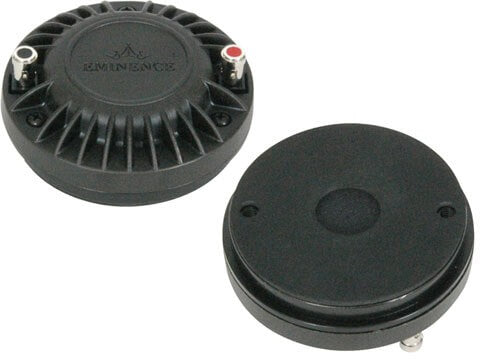

Eminence NSD 2005 8 Ohm 50W Bolt-On Professional Audio Compression Driver for PA Systems, Live Sound & Studio Recording
$89.16
$162.12
-45% OFF
Free shipping on all orders over $50
7-15 days international
6 people viewing this product right now!
30-day free returns
Secure checkout
83510588
Guranteed safe checkout
Description
High frequency 1" bolt on compression driver.
| Specification | |
| Throat Size | 1", 25.4mm |
| Nominal Impedance* | 8Ω |
| Minimum Impedance | 9.0 ohm @ 5.9 kHz |
| Power Rating** | 50 W (AES) |
| Resonance | 0.57kHz |
| Usable Frequency Range | 1500Hz-20kHz |
| Recommended Crossover | 1.5 kHz / 12 dBkHz |
| Sensitivity*** | 109 |
| Magnet Material | Neodymium |
| Magnet Weight | 4oz, 0.11kg |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former | Polyimide |
| Diaphragm Material | Titanium |
| DC Resistance (Re) | 6.8Ω |
| Mounting Information | |
| Overall Diameter | 3.87", 98.3mm |
| Driver Volume Displaced | 0.008 cu.ft., 0.22 liters |
| Depth | 1.75", 44.4mm |
| Weight | 1.7 lbs, 0.8 kg |
| Mounting Thread | N/A |
| Mounting Holes Diameter | 2X 1/4-20 |
| Mounting Holes B.C.D. | 3 in. 76.2 mm |
