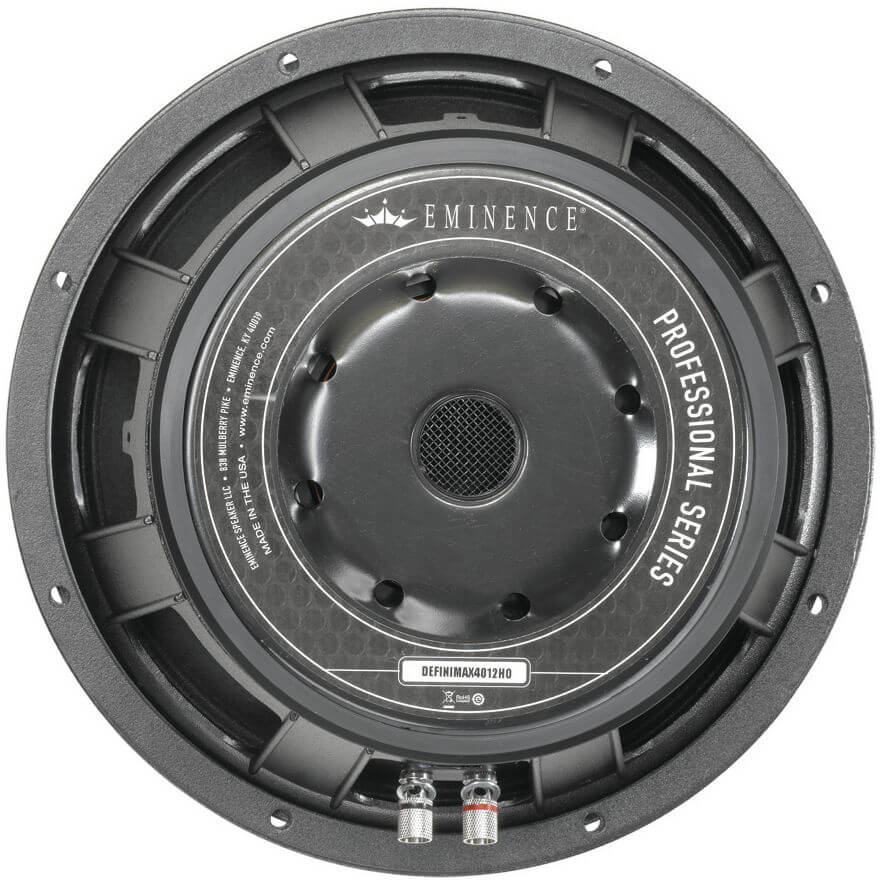

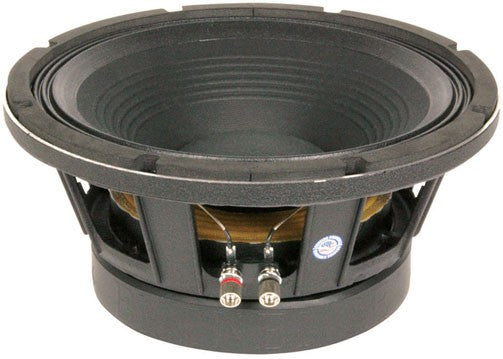

Eminence Definimax 4012HO 12" 600W 8 Ohm Professional Audio Woofer Speaker - Perfect for PA Systems, Live Sound, and Studio Monitors

$144.84 $263.35 -45% OFF

Free shipping on all orders over $50

7-15 days international

16 people viewing this product right now!

30-day free returns

Secure checkout

70869121

Guranteed safe checkout
amex
paypal
discover
mastercard
visa
apple pay

Description

High output, low distortion mid-bass or woofer with a broad frequency response. Recommended for pro audio in both sealed and vented enclosures.




Speaker Detail
Specification
Nominal Basket Diameter12", 305 mm
Nominal Impedance*8 Ω
Power Rating*
Program Power1200 W
Watts600 W
Resonance51 Hz
Usable Frequency Range48 Hz - 2.7 kHz
Sensitivity*96.2 dB
Magnet Weight109 oz.
Gap Height0.37", 9.5 mm
Voice Coil Diameter4", 102 mm
Thiele & Small Parameters
Resonant Frequency (fs)51 Hz
DC Resistance (Re)5.52 Ω
Coil Inductance (Le)0.95m H
Mechanical Q (Qms)11.03
Electromagnetic Q (Qes)0.36
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)53.68 liters / 1.9 cu.ft.
Peak Diaphragm Displacement Volume (Vd)338.2 cc
Mechanical Compliance of Suspension (Cms)0.13 mm/N
BL Product (BL)19.56 T-M
Diaphragm Mass Inc. Airload (MMs)78 grams
Efficiency Bandwidth Product (EBP)142
Maximum Linear Excursion (Xmax)6.2 mm
Surface Area of Cone (Sd)545.4 cm2
Maximum Mechanical Limit (Xlim)11.2 mm
Mounting Information
Recommended Enclosure Volume
Sealed25.49-76.46 liters / 0.9-2.7 cu.ft.
Vented33.98-99.11 liters / 1.2-3.5 cu.ft.
Driver Volume Displaced0.106 cu.ft. / 3 liters
Overall Diameter12.38", 314.5 mm
Baffle Hole Diameter11.06", 280.9 mm
Front Sealing GasketYes
Rear Sealing GasketYes
Mounting Holes Diameter0.27", 6.9mm
Mounting Holes B.C.D.11.69", 296.9mm
Depth5.32", 135.1 mm
Net Weight22.5 lbs, 10.21 kg
Shipping Weight24.8 lbs, 11.25 kgs
Materials of Construction
Coil ConstructionEdge wound copper voice coil
Coil FormerKapton former
Magnet CompositionFerrite magnet
Core DetailsUndercut with aluminum shorting ring and Core Periphery Ventilation

Basket MaterialsDie-cast aluminum basket
Cone CompositionWater resistant paper cone
Cone Edge CompositionCloth cone edge
Dust Cap CompositionWater resistant treated paper dust cap

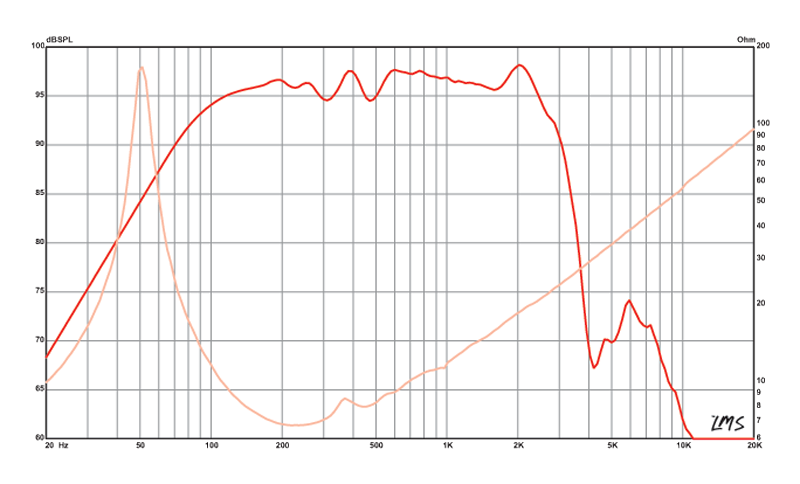

response graph
