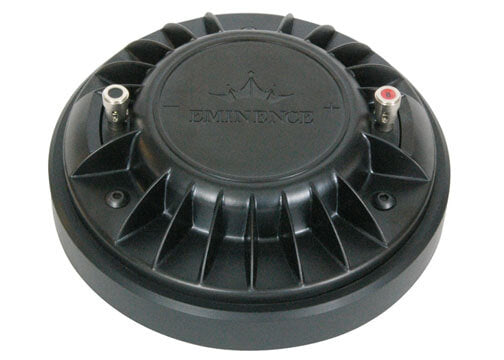

Eminence PSD 3006 8 Ohm 2" 115W Bolt-On Pro Audio Compression Driver - High Power Speaker for Live Sound, PA Systems & Studio Monitoring
$194.78
$354.16
-45% OFF
Free shipping on all orders over $50
7-15 days international
12 people viewing this product right now!
30-day free returns
Secure checkout
70691485
Guranteed safe checkout
Description
High frequency 2" throat bolt on compression driver.
| Specification | |
| Throat Size | 2", 50.8mm |
| Nominal Impedance* | 8Ω |
| Minimum Impedance | 7.1 ohm @ 3.4 kHz |
| Power Rating** | 100 W (AES) |
| Resonance | 0.47kHz |
| Usable Frequency Range | 800Hz-20kHz |
| Recommended Crossover | 800 Hz / 12 dBkHz |
| Sensitivity*** | 108.8 |
| Magnet Material | Ferrite |
| Magnet Weight | 80oz, 2.27kg |
| Voice Coil Diameter | 3" / 76.2mm |
| Voice Coil Former | Polyimide |
| Diaphragm Material | Titanium w/ geodesic ribs for increased stiffness and break-up control. |
| DC Resistance (Re) | 4.8Ω |
| Mounting Information | |
| Overall Diameter | 7.9", 200.7mm |
| Driver Volume Displaced | 0.04 cu.ft., 1.36 liters |
| Depth | 3.1", 78.7mm |
| Weight | 13.2 lbs, 6 kg |
| Mounting Thread | N/A |
| Mounting Holes Diameter | 4X 1/4-20 |
| Mounting Holes B.C.D. | 4 in. 101.6 mm |
