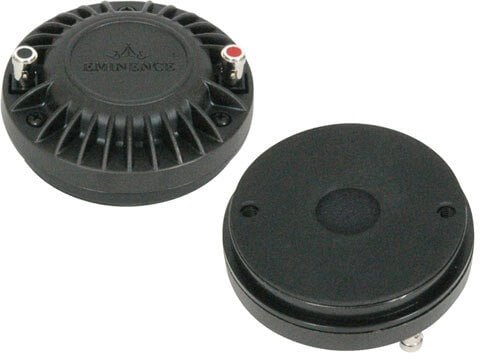

Eminence NSD 2005 16 Ohm 50W Bolt-On Compression Driver - Professional Audio Component for PA Systems, Stage Monitors & High-Frequency Sound Reproduction

High frequency 1" bolt on compression driver.

SPECIFICATIONS

Throat Diameter: 1", 25.4 mm
Nominal Impedance: 16 ohms
Power: 50W rms @ 1.5 kHz
Fs: 578 Hz
Re: 12.1 ohms
Freq. Response: 1.5kHz- 20kHz
Recommended Min. X-over: 1.5kHz@12db/octave
Sensitivity: 108.4db 1w/1m
Magnet Weight: 4.6 oz, 130 grams
Voice Coil Diameter: 2", 50.8 mm
Voice Coil Former Material: Polyimide
Diaphragm Material: Titanium

MOUNTING INFORMATION
Mounting Style: Bolt on
Mounting Bolt Threads: 1/4"x20UNC
Mounting Bolt Pattern:
- 2 holes on 3", 76.2 mm BCD

OVERALL DIMENSIONS
Outside Diameter: 3.87", 98.3 mm
Depth: 1.75", 44.5 mm
Weight: 2 lbs, 909 grams
