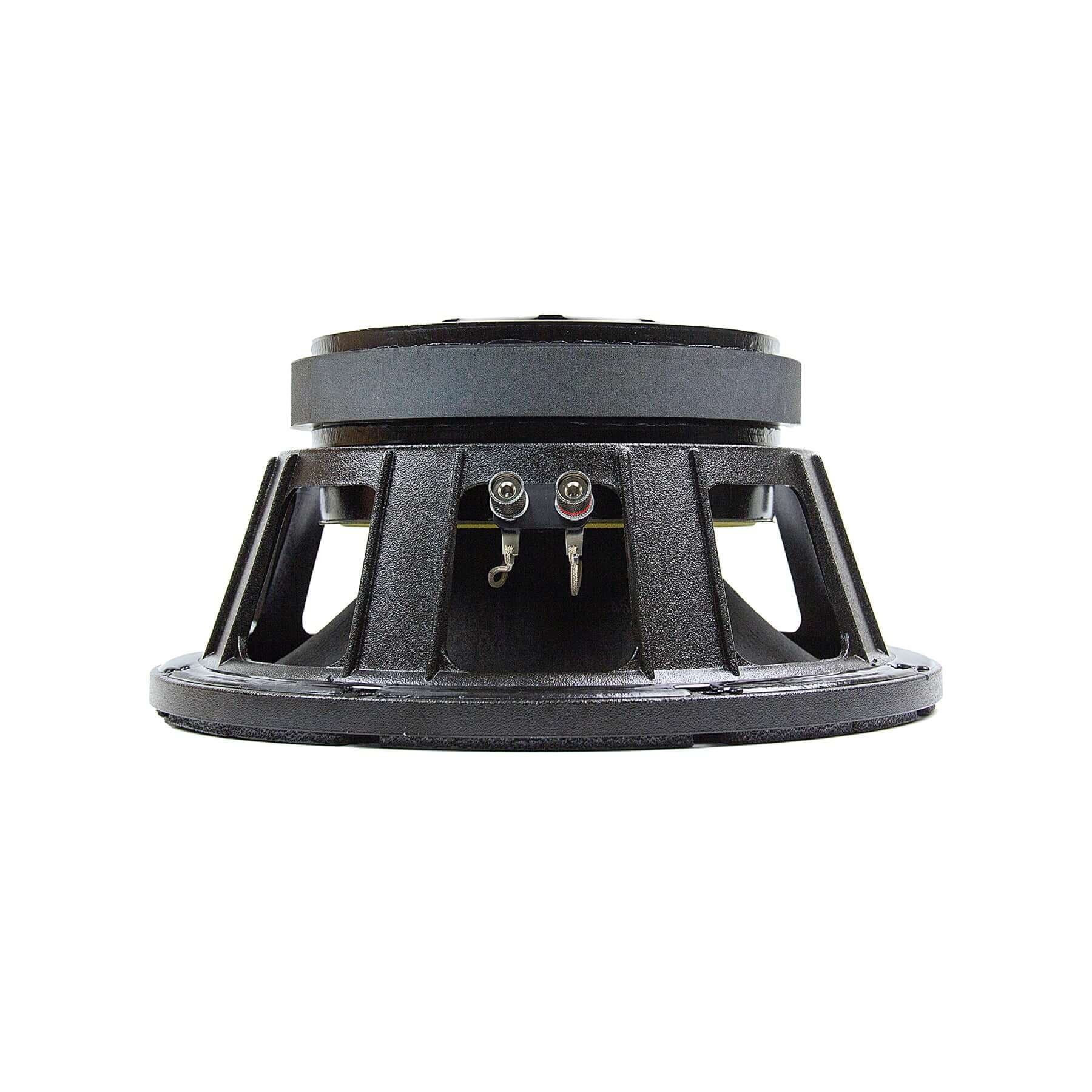

Eminence Omega Pro 12" 2KW 8 Ohm 1000W Professional Audio Woofer Speaker - Perfect for Live Sound, DJ Equipment, and High-Power PA Systems
Free shipping on all orders over $50
7-15 days international
7 people viewing this product right now!
30-day free returns
Secure checkout
65462323
Description
What’s inside the Eminence Omega Pro 12-2KW-8? We could bore you with details about the high-power double layer, inside/outside wound copper coil with fiberglass former, weatherproofing treatments, or carefully optimized components. Still, we’re not getting any younger, and neither are you! Incorporated in the Eminence Omega Pro 12-2KW-8 is the experience you can trust derived from fifty-seven years of using, designing, and making loudspeakers.
Here’s why you need the Eminence Omega Pro 12-2KW-8. You’ll forget about lugging those extra subs around because your mains can’t go there. The Omega Pro 12-2KW-8 gets low in those small vented boxes and with 4,000W (peak) AES power handling potential to ensure they get loud too.
Not only are the parameters carefully selected to stand alone in the tiny tops of today, but Eminence specifically tailored their smooth frequency responses for the most manageable passive or active network designs you will ever encounter. Eminence engineers invested great care to ensure these drivers do the job for many years to come.
Applications: Mid-Bass | Subwoofer | Woofer | Pro Audio | Bass Guitar
Box Type: Vented | Scoop Loading | Horn Loading
| SPECIFICATION | |
| Nominal Basket Diameter | 12", 304.8 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 2000 W |
| Watts | 1000 W |
| Resonance | 48.14 Hz |
| Usable Frequency Range | 42 Hz - 1.6 kHz |
| Sensitivity* | 93.33 dB |
| Magnet Weight | 109 oz. |
| Gap Height | 0.375", 9.5 mm |
| Voice Coil Diameter | 4", 101.6 mm |
| THIELE & SMALL PARAMETERS | |
| Resonant Frequency (fs) | 48.14 Hz |
| DC Resistance (Re) | 6.04 Ω |
| Coil Inductance (Le) | 1.13 m H |
| Mechanical Q (Qms) | 14.88 |
| Electromagnetic Q (Qes) | 0.40 |
| Total Q (Qts) | 0.39 |
| Compliance Equivalent Volume (Vas) | 49.55 liters / 1.75 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 387 cc |
| Mechanical Compliance of Suspension (Cms) | 0.12 mm/N |
| BL Product (BL) | 20.40 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 91.96 grams |
| Efficiency Bandwidth Product (EBP) | 119.2 |
| Maximum Linear Excursion (Xmax) | 7.1 mm |
| Surface Area of Cone (Sd) | 545.4 cm2 |
| Maximum Mechanical Limit (Xlim) | 19.6 mm |
| MOUNTING INFORMATION | |
| Recommended Enclosure Volume | |
| Sealed | N/a |
| Vented | 31.15-87.78 liters / 1.1-3.1 cu.ft. |
| Driver Volume Displaced | 183 cu.in. / 3 liters |
| Overall Diameter | 12.38", 314.45 mm |
| Baffle Hole Diameter | 11.06", 280.92 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | No |
| Mounting Holes Diameter | 0.28", 7.112mm |
| Mounting Holes B.C.D. | 11.7", 297.18mm |
| Depth | 6.04", 153.416 mm |
| Net Weight | 21.8 lbs, 9.89 kg |
| Shipping Weight | 23.8 lbs, 10.8 kgs |
| MATERIALS OF CONSTRUCTION | |
| Coil Construction | Inside/outside copper voice coil |
| Coil Former | Fiberglass former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented and extended core |
| Backplate Details | Vented |
| Basket Materials | Die-cast aluminum basket |
| Cone Composition | Water-resistant treated paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Water-resistant treated dust cap |
