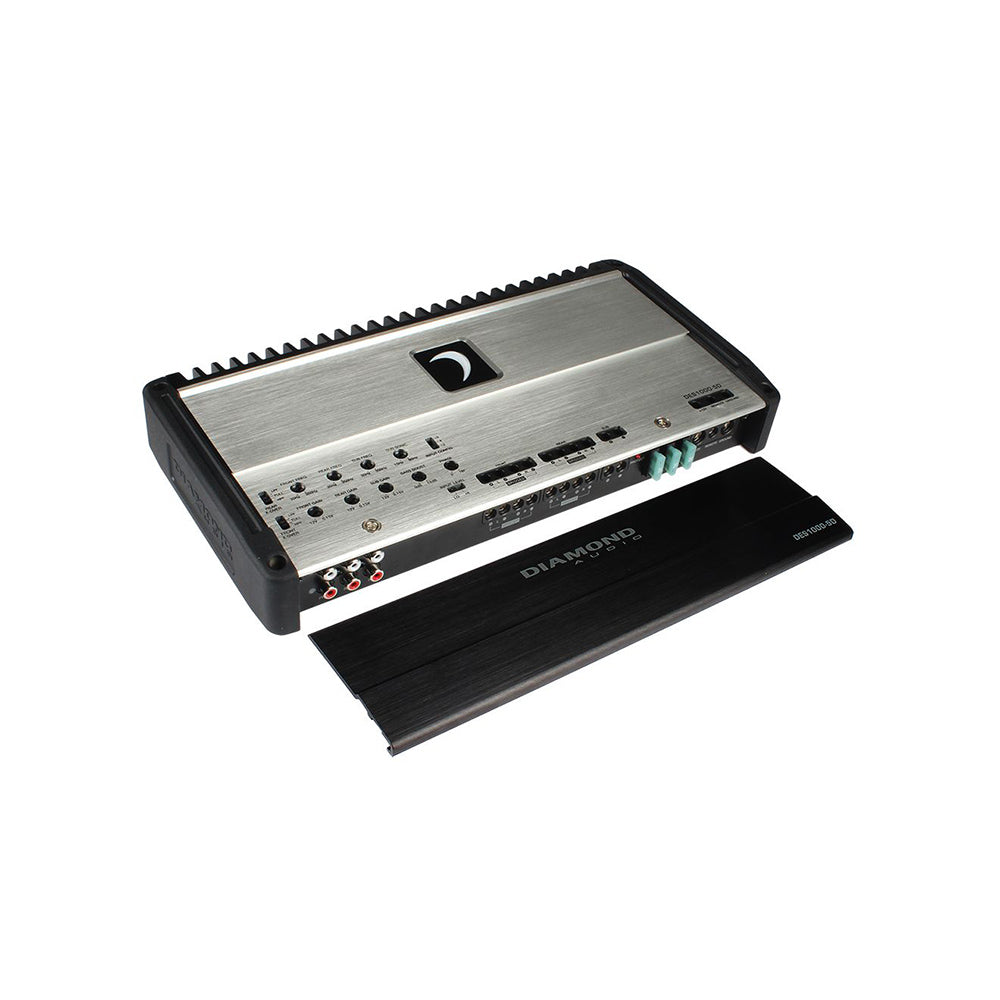

Refurbished Diamond Audio DES1000.5D 1000W RMS 5-Channel Class D Car Amplifier - Elite Series Full Range Power for Car Audio Systems | Perfect for Upgrading Vehicle Sound Systems, Home Theater Setups & Bass Enhancement

Features:

• Diamond Audio Elite Series Class D 2 ohms Stable 5-Channel Amplifier
• RMS Power Rating:
  • 4 ohms: 90 watts x 4 channel + 300 watts x 1 channel
  • 2 ohms: 150 watts x 4 channel + 500 watts x 1 channel
  • Bridged: 300 watts x 2 channel @ 4 ohms + 500 watts x 1 channel @ 2 ohms
• Total power output: 1000 watts
• Pulse Width Modulated MOSFET power supply
• LED Power/Protect Light
• Speaker-level (high-level) inputs
• Wired remote bass level control included
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Input sensitivity:
  • Low level: .2 - 10 volts
• Total Harmonic Distortion (THD): 0.03%
• Variable high-pass filter: 35 - 350 Hz
• Variable low-pass filter: 35 - 350 Hz
• Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz
• Fuse Rating: 40A x 3
• 4 AWG gauge power and ground wiring is recommended for installation.
• Latest High Efficiency Full Range Digital Topology
• Surface Mount Component Technology with 4-Layer PCB
• Common Compact Size with Single-Sided Connections and Top Mount Controls
• Continuous Power Output at 2/4 ohm loads
• Common Compact Size with Single Sided Connections and Top Mount Controls
• Switched Speaker Level Turn On Options (VOX/DC Offset/REM)
• 0 -180 Degrees of Phase adjustment
• Dimensions: 7.67" W x 12.6" L x 2" H

Specifications:

• Series: Elite Series
• Marine Certified: No
• Amplifier Class: D
• Number of Channels: 5
• Total RMS Power Output: 1000 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• THD at Rated RMS Power: 0.03%
• Speaker Level Inputs: No
• Preamp Outputs: 1 pair
• Built-in Crossover: Low-Pass (LP), High-Pass (HP), Subsonic
• High-Pass Crossover Frequency: 35 - 350 Hz
• Low-Pass Crossover Frequency: 35 - 350 Hz
• Subsonic Filter: 15 - 75 Hz
• Signal-to-Noise Ratio: 76.7 dB
• Bass Boost: 0 - 12 dB
• Remote bass/level controller: Yes
• Fuse Rating: 40A x 3
• Strappable: No
• Amp Bluetooth Connectivity: No
• Hi-Res Certified: No
• Low-Level Input Sensitivity: .2 - 10 volts
• High-Level Input Sensitivity: 0 - 12 volts

THREE MONTHS LIMITED WARRANTY
