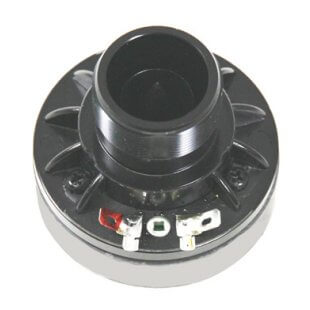

Eminence APT 50 8 Ohm 35W Screw-On Compression Driver - High-Performance Speaker Component for PA Systems & Professional Audio Applications
$38.49
$69.99
-45% OFF
Free shipping on all orders over $50
7-15 days international
9 people viewing this product right now!
30-day free returns
Secure checkout
63576808
Guranteed safe checkout
Description
1" throat screw on compression driver. 45 watts, 8 ohm.
For replacement diaphragm use:
SPECIFICATIONS
Throat Diameter: 1", 25.4 mm
Nominal Impedance: 8 ohms
Power: 35w rms @ 3.5 kHz, 85w rms @ 5kHz
Resonance: 2.1 kHz
Re: 6.3 ohms

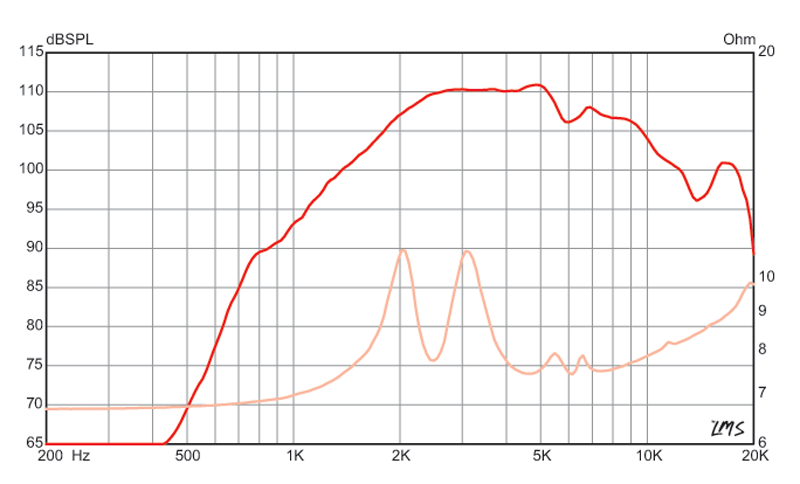

Freq. Response: 3.5kHz-20kHz
Recommended Min. X-over: 3.5kHz@12db/octave
Sensitivity: 104.7db 1w/1m
Magnet Weight: 7.75 oz, 220 grams
Voice Coil Diameter: 1", 25.4 mm
Diaphragm Material: Phenolic
MOUNTING INFORMATION
Mounting Style: Screw on
Snout Thread: 1-3/8" x 18UNEF
OVERALL DIMENSIONS
Outside Diameter: 2.75", 70 mm
Depth: 2.5", 63.5 mm
Weight: 1.63 lbs, 0.74 kg
