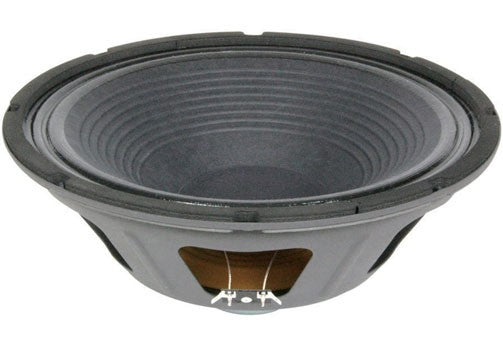

Eminence Lil' Texas 8 Ohm 12-Inch 125W Lightweight Neodymium Guitar Speaker - Perfect for Blues, Rock & Metal Amplifiers & Cabinets
$103.39
$187.99
-45% OFF
Free shipping on all orders over $50
7-15 days international
12 people viewing this product right now!
30-day free returns
Secure checkout
63417546
Guranteed safe checkout
Description
The lightweight Eminence Lil' Texas guitar speaker gives an All-American sound with balance. Crisp mids, top end bite with tight bottom end. Use it if you play Classic Rock, Blues, or Country
Colouration: Very balanced with crisp mids and top end bite. Tight bottom end, very American tonality.
Genre: Classic Rock, Blues and Country
| Specification | |
| Nominal Basket Diameter | 12", 305 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | N/A |
| Watts | 125 W |
| Resonance | 90 Hz |
| Usable Frequency Range | 80 Hz - 5 kHz |
| Sensitivity* | 101.2 dB |
| Magnet Weight | 4 oz. |
| Gap Height | 0.28", 7.1 mm |
| Voice Coil Diameter | 2", 51 mm |
| Thiele & Small Parameters | |
| Resonant Frequency (fs) | 90 Hz |
| DC Resistance (Re) | 7.2 Ω |
| Coil Inductance (Le) | 0.42m H |
| Mechanical Q (Qms) | 11.29 |
| Electromagnetic Q (Qes) | 0.69 |
| Total Q (Qts) | 0.65 |
| Compliance Equivalent Volume (Vas) | 43.3 liters / 1.53 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 66 cc |
| Mechanical Compliance of Suspension (Cms) | 0.11 mm/N |
| BL Product (BL) | 12.8 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 28 grams |
| Efficiency Bandwidth Product (EBP) | 130 |
| Maximum Linear Excursion (Xmax) | 1.27 mm |
| Surface Area of Cone (Sd) | 519.5 cm2 |
| Maximum Mechanical Limit (Xlim) | N/A |
| Mounting Information | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.059 cu.ft. / 1.67 liters |
| Overall Diameter | 12.03", 305.6 mm |
| Baffle Hole Diameter | 11.07", 281.2 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.25", 6.4mm |
| Mounting Holes B.C.D. | 11.59", 294.4mm |
| Depth | 5.07", 128.8 mm |
| Net Weight | 4.1 lbs, 1.86 kg |
| Shipping Weight | 5.8 lbs, 2.63 kgs |
| Materials of Construction | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Neodymium magnet |
| Core Details | Non-vented core |
| Basket Materials | Pressed steel basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Paper cone edge |
| Dust Cap Composition | Zurette dust cap |
