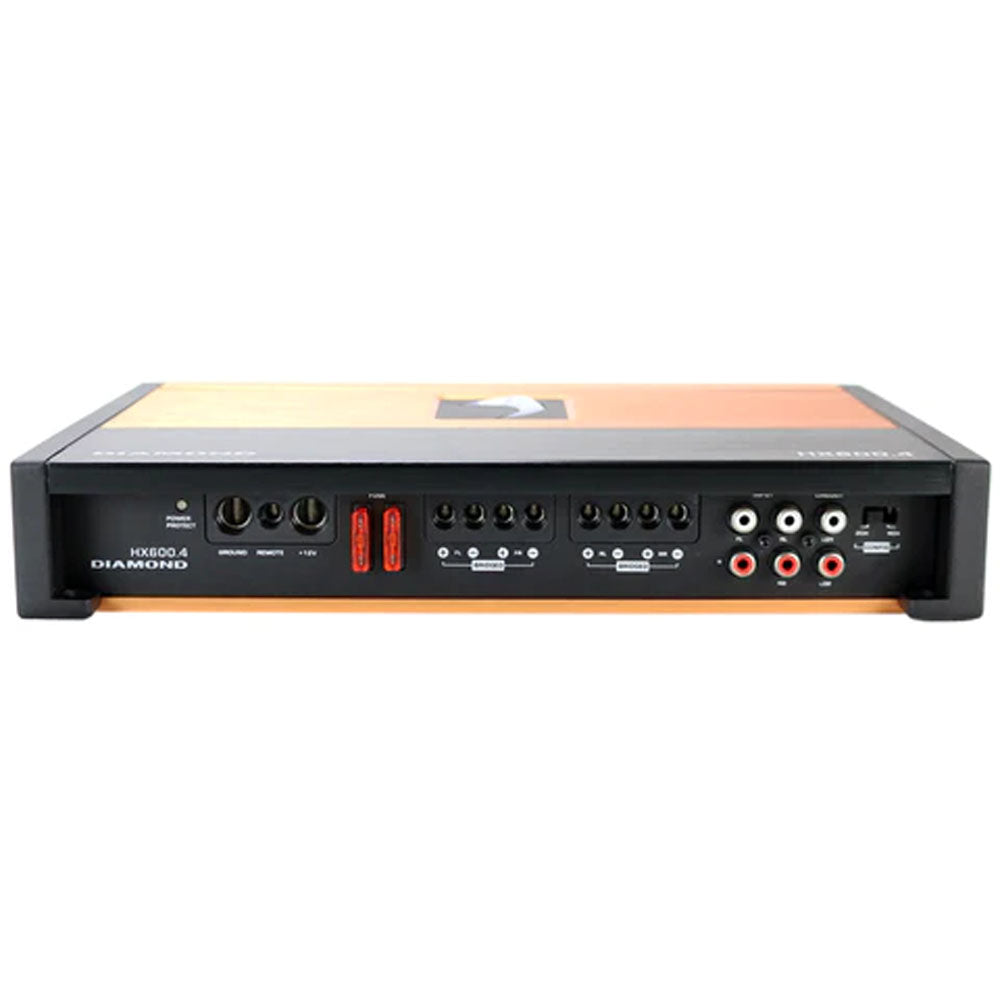

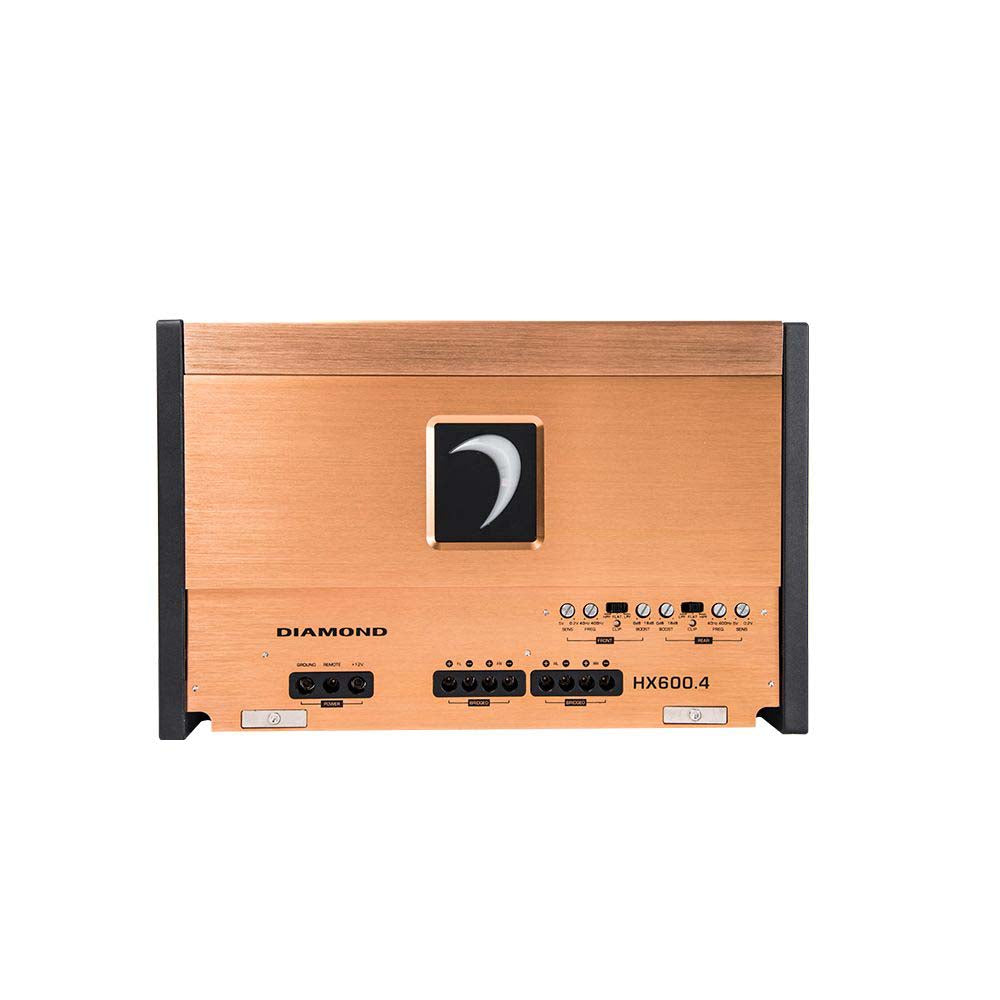

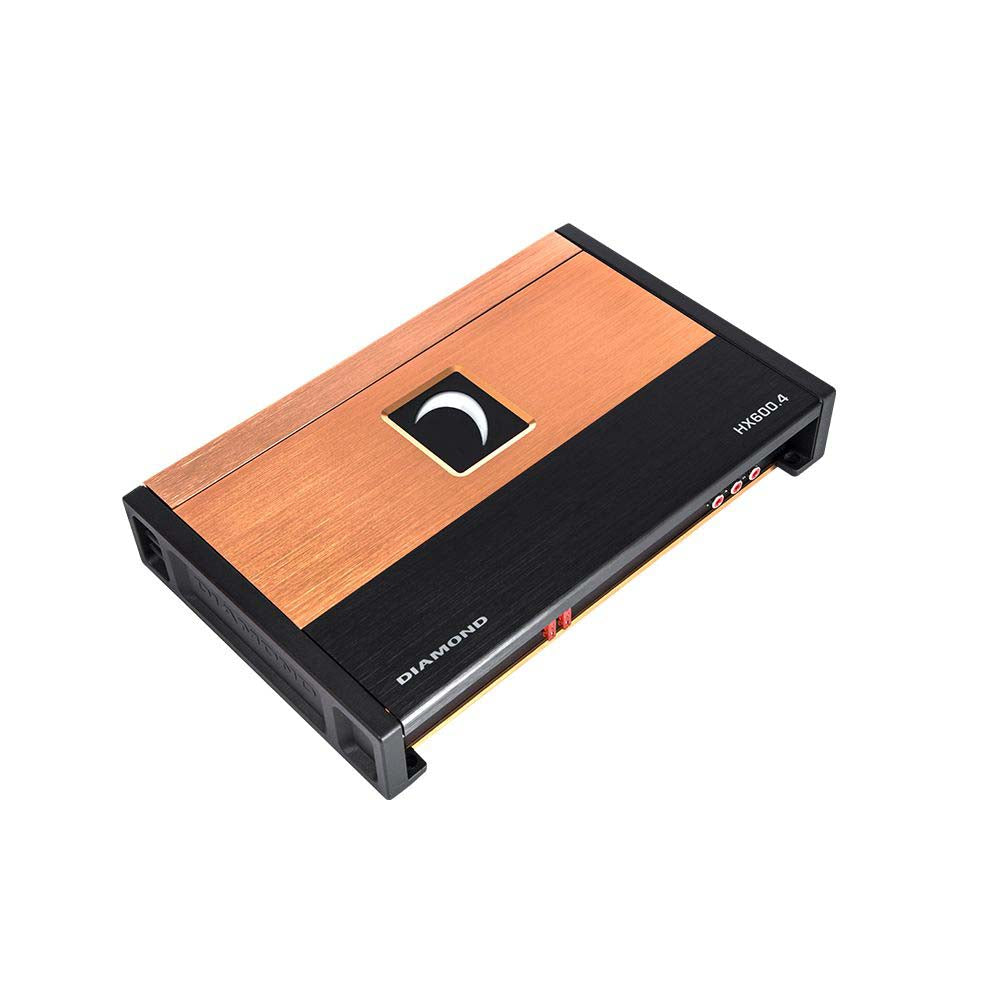

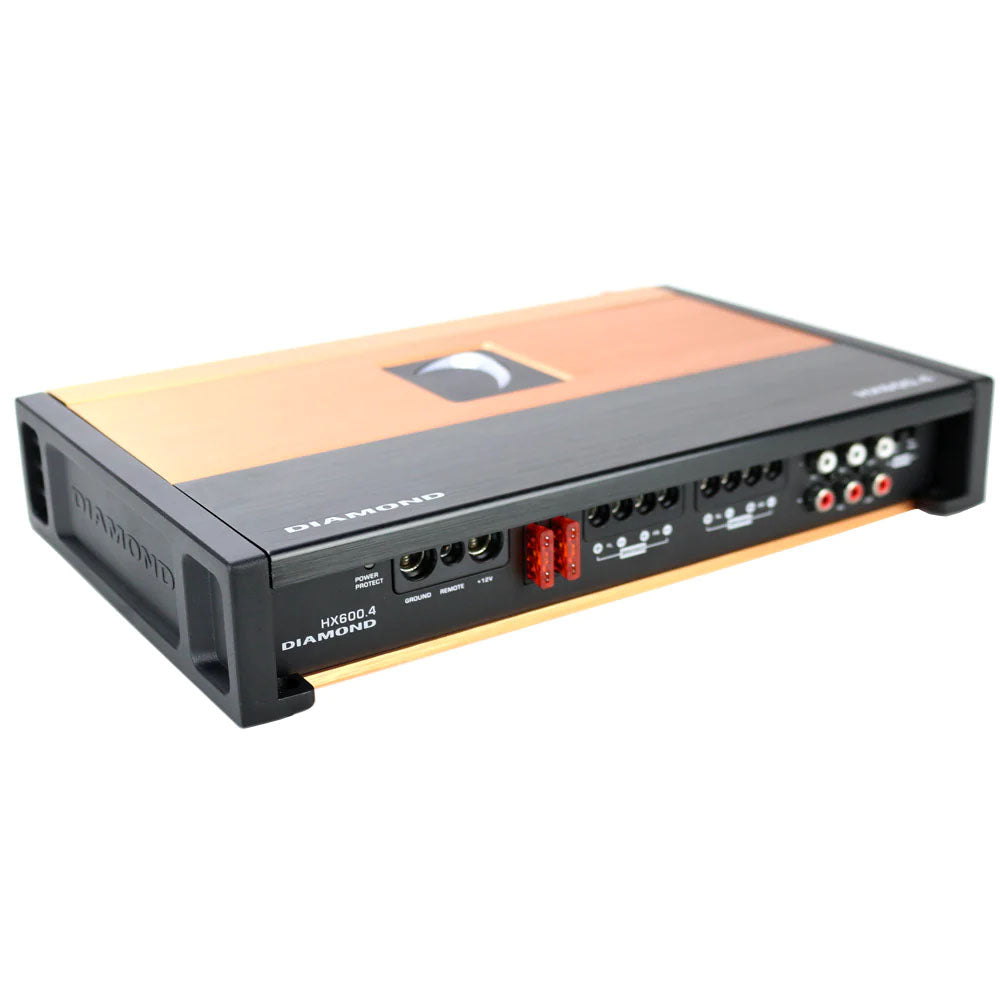

Refurbished Diamond Audio HX600.4 600W RMS 4-Channel Class D Amplifier - HEX Series Car Audio System for Enhanced Full-Range Sound in Vehicles & Boats

Features:

• RMS Power Rating:
  • 4 ohms: 160 watts x 4 channel
  • 2 ohms: 250 watts x 4 channel
  • Bridged, 4 ohms: 500 watts x 2 channel
• Total power output: 600 watts
• Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
• 4-Layer PCB Board with Balanced Differential Inputs
• Full Range Class D IR Chipset
• "SNAP" Capacitors used Throughout the Circuit
• Audiophile Grade High Tolerance Components
• Spring Steel FET Clips Provide a Cleaner Board Design
• Illuminated Logo / Fully Concealed Mounting
• Output Clip Indicators for Precise Set-Up
• Fine Tuned Fully Variable Crossovers and Phase Control
• Bass gain/level remote included
• Input sensitivity:
  • Low level: 200mV - 5.0V volts
• Frequency Response: 10 - 35 Hz
• Total Harmonic Distortion (THD): 0.06%
• Signal to Noise Ratio: >80 dB
• Variable high-pass filter: 40 - 400 Hz, 24 dB/octave
• Variable low-pass filter: 40 - 400 Hz, 24 dB/octave
• Fuse Rating: 50
• 8 AWG gauge power and ground wiring is recommended for installation.
• Dimensions: 7.67" W x 11.9" L x 2" H

Specifications:

• Amplifier Class: D
• Number of Channels: 4
• Total Peak Power Output: 1200 watts
• Total RMS Power Output: 600 watts
• Maximum Input Gauge Size: 8 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• Frequency Response: 10 - 35 Hz
• THD at Rated RMS Power: 0.06%
• Speaker Level Inputs: Yes
• Built-in Crossover: Low-Pass (LP), High-Pass (HP)
• High-Pass Crossover Frequency: 40 - 400 Hz
• Low-Pass Crossover Frequency: 40 - 400 Hz
• Signal-to-Noise Ratio: >80 dB
• Remote bass/level controller: Yes
• Fuse Rating: 25A x 2
• Total Fuse Rating: 50
• Amp Bluetooth Connectivity: No
• Low-Level Input Sensitivity: 200mV - 5.0V volts

THREE MONTHS LIMITED WARRANTY
