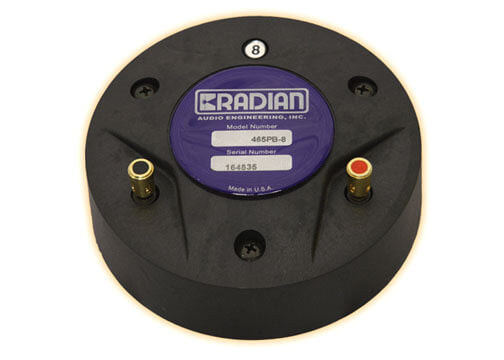

Radian 465PB 8 Ohm 1.35W Professional Audio Compression Driver for High-End PA Systems & Studio Monitors - Special Order

This is a special order item. Once an order has been placed we will order in this product for you after payment has been received. Order will be held until all items are ready to ship.

1" throat bolt on compression driver.

SPECIFICATIONS
Throat Diameter: 1.0", 25.4mm
Nominal Impedance: 8 ohms
Power: 35 W rms
Freq. Response: 800 Hz- 20kHz
Minimum Rec. Crossover: 800 Hz@24db/octave or 1.2 kHz@12dB/octave
Sensitivity: 112db 1w/1m
Magnet Weight: 24.5 oz, 693 grams
Voice Coil Diameter: 1.75", 44mm
Voice Coil Material: Edgewood Copper clad Auminum
Diaphragm Material: Heat treated Aluminum alloy

MOUNTING INFORMATION
Mounting Style: Bolt on
Mounting Bolt Threads: 1/4" x 20UNF
Mounting Bolt Patterns:
- 3 holes on 2.02", 51.3mm BCD
- 2 holes on 3.0", 76mm BCD

OVERALL DIMENSIONS
Outside Diameter: 5.10", 130mm
Depth: 2.48", 63mm
Weight: 4.25 lbs, 1.93 kg
