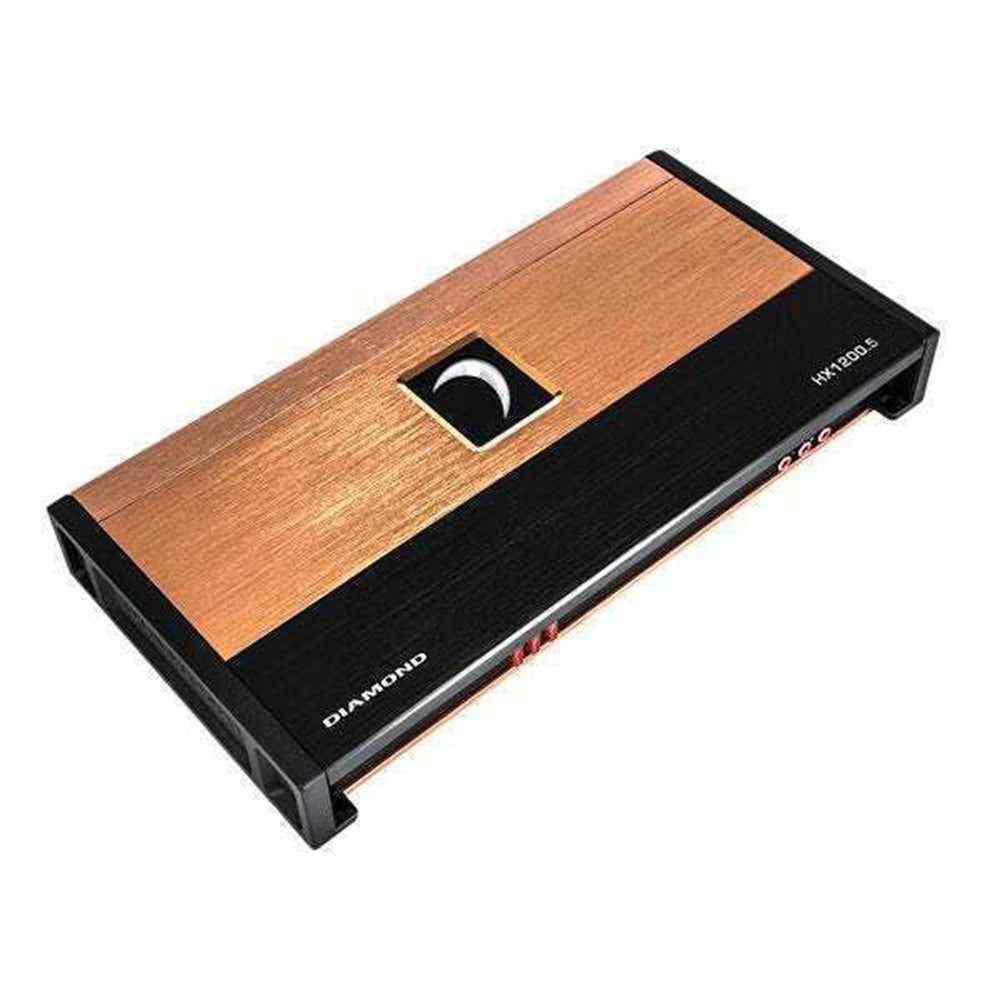

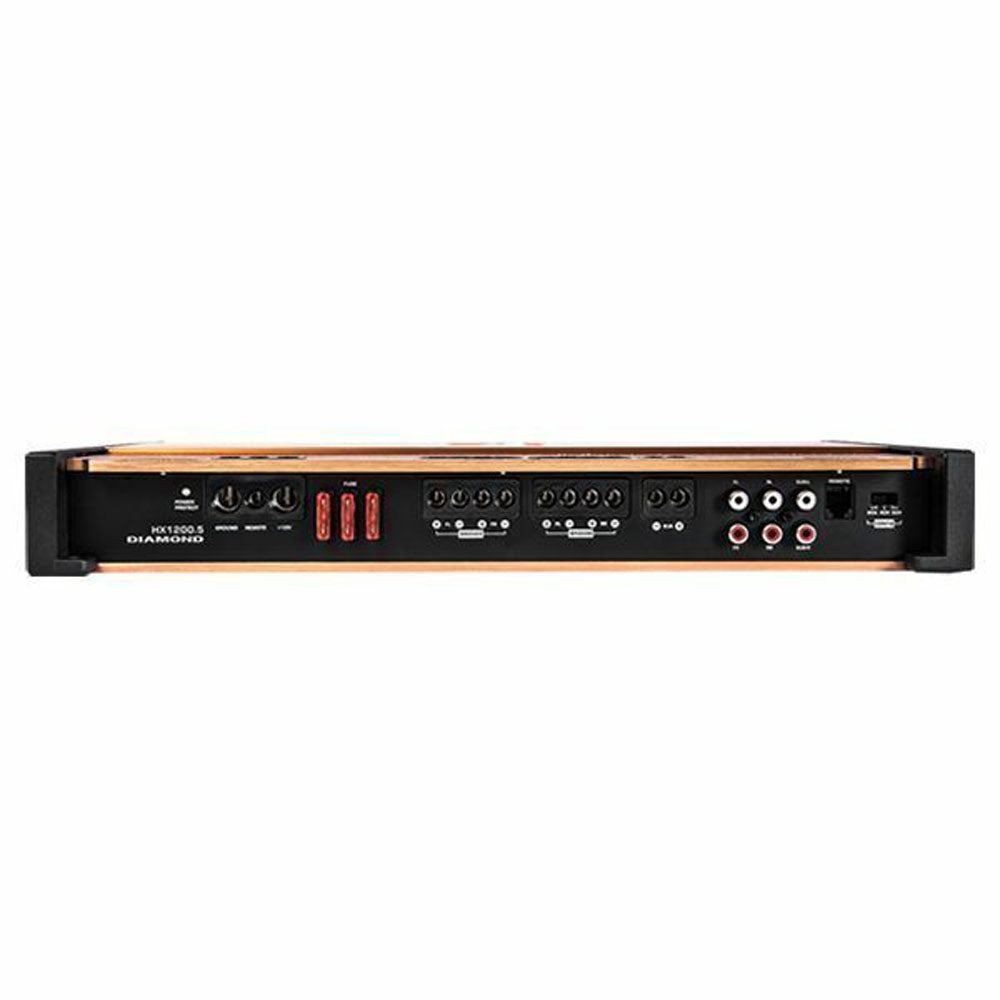

Diamond Audio HX1200.5 1200W RMS HEX Series 5-Channel Class D Car Amplifier - Premium Full Range Sound for Cars, Trucks & SUVs | Perfect for Audio Upgrades, Bass Boost & Multi-Speaker Systems

Features:

• RMS Power Rating:
  • 4 ohms: 100 watts x 4 channel + 480 watts x 1 channel
  • 2 ohms: 150 watts x 4 channel + 800 watts x 1 channel
  • Bridged: @ 4 ohms + 800 watts x 1 channel @ 2 ohms
• Total power output: 1200 watts
• Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance
• 4-Layer PCB Board with Balanced Differential Inputs
• Full Range Class D IR Chipset
• "SNAP" Capacitors used Throughout the Circuit
• Wired remote bass level control included
• Audiophile Grade High Tolerance Components
• Spring Steel FET Clips Provide a Cleaner Board Design
• Illuminated Logo / Fully Concealed Mounting
• Output Clip Indicators for Precise Set-Up
• Fine Tuned Fully Variable Crossovers and Phase Control
• Input sensitivity:
  • Low level: 200mV - 5.0 volts
• Frequency Response: 10 - 3500 Hz
• Total Harmonic Distortion (THD): 0.06%
• Signal to Noise Ratio: >80 dB
• Variable high-pass filter: 40 - 400 Hz, 24 dB/octave
• Variable low-pass filter: 30 - 300 Hz, 24 dB/octave
• Fuse Rating: 80
• Dimensions: 7.67" W x 14.25" L x 2" H

Specifications:

• Series: HEX Series
• Amplifier Class: D
• Number of Channels: 5
• Total Peak Power Output: 2400 watts
• Total RMS Power Output: 1200 watts
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• Frequency Response: 10 - 3500 Hz
• THD at Rated RMS Power: 0.06%
• Speaker Level Inputs: Yes
• Preamp Outputs: 3 pairs
• Built-in Crossover: Low-Pass (LP), High-Pass (HP), Subsonic
• High-Pass Crossover Frequency: 40 - 400 Hz
• Low-Pass Crossover Frequency: 30 - 300 Hz
• Subsonic Filter: 10 - 55 Hz
• Signal-to-Noise Ratio: >80 dB
• Remote bass/level controller: Yes
• Fuse Rating: 40A x 2
• Total Fuse Rating: 80
• Amp Bluetooth Connectivity: No
• Low-Level Input Sensitivity: 200mV - 5.0 volts
