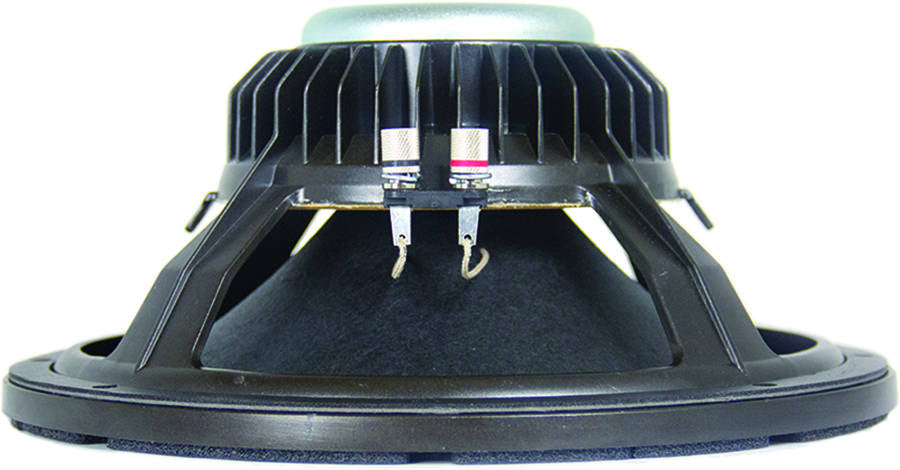

Rated at 300 watts, the Travis Toy Signature Double-T 12 pedal steel guitar speaker features a tight low end, a midrange bite that can cut through a mix, and detailed high end without being too bright. Travis worked closely with the engineers at Eminence to achieve these characteristics and even managed to pack them all into a 12" speaker that weighs just over 7 lbs - less than half the weight of the speakers he replaced.
| Specification | |
| Nominal Basket Diameter | 12", 305 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | N/A |
| Watts | 300 W |
| Resonance | 53 Hz |
| Usable Frequency Range | 50 Hz - 3.8 kHz |
| Sensitivity* | 100.2 dB |
| Magnet Weight | 11 oz. |
| Gap Height | 0.36", 9.1 mm |
| Voice Coil Diameter | 3", 76 mm |
| Thiele & Small Parameters | |
| Resonant Frequency (fs) | 53 Hz |
| DC Resistance (Re) | 5.6 Ω |
| Coil Inductance (Le) | 0.57m H |
| Mechanical Q (Qms) | 19.59 |
| Electromagnetic Q (Qes) | 0.3 |
| Total Q (Qts) | 0.3 |
| Compliance Equivalent Volume (Vas) | 63.69 liters / 2.25 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 122.1 cc |
| Mechanical Compliance of Suspension (Cms) | 0.17 mm/N |
| BL Product (BL) | 18.23 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 54 grams |
| Efficiency Bandwidth Product (EBP) | 177 |
| Maximum Linear Excursion (Xmax) | 2.35 mm |
| Surface Area of Cone (Sd) | 519.5 cm2 |
| Maximum Mechanical Limit (Xlim) | N/A |
| Mounting Information | |
| Recommended Enclosure Volume | |
| Sealed | Acceptable |
| Vented | Acceptable |
| Driver Volume Displaced | 0.09 cu.ft. / 2.54 liters |
| Overall Diameter | 12.38", 314.5 mm |
| Baffle Hole Diameter | 11.04", 280.4 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.28", 7.1mm |
| Mounting Holes B.C.D. | 11.62", 295.2mm |
| Depth | 5.63", 143 mm |
| Net Weight | 7.1 lbs, 3.22 kg |
| Shipping Weight | 8.7 lbs, 3.95 kgs |
| Materials of Construction | |
| Coil Construction | Copper voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Neodymium magnet |
| Core Details | Vented core |
| Basket Materials | Die-cast aluminum basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth edge |
| Dust Cap Composition | Paper dust cap |
