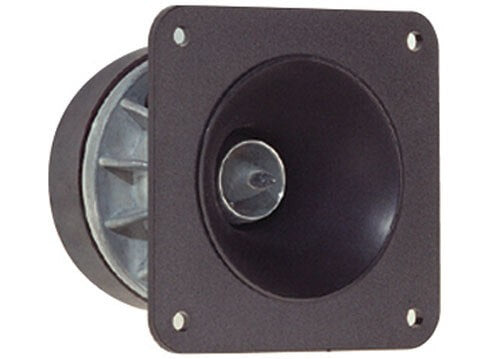

Eminence APT 80 8 Ohm 35W Professional Audio Bullet Tweeter - High-Performance Speaker for Studio, Live Sound & PA Systems

High output bullet tweeter ideal for all professional sound applications.

For replacement diaphragm use:

SPECIFICATIONS
Horn Type: Conical
Throat Diameter: 1", 25.4mm
Dispersion: 80º conical
Nominal Impedance: 8 ohms
Power: 35w rms @ 3.5 kHz, 85w rms @ 5 kHz

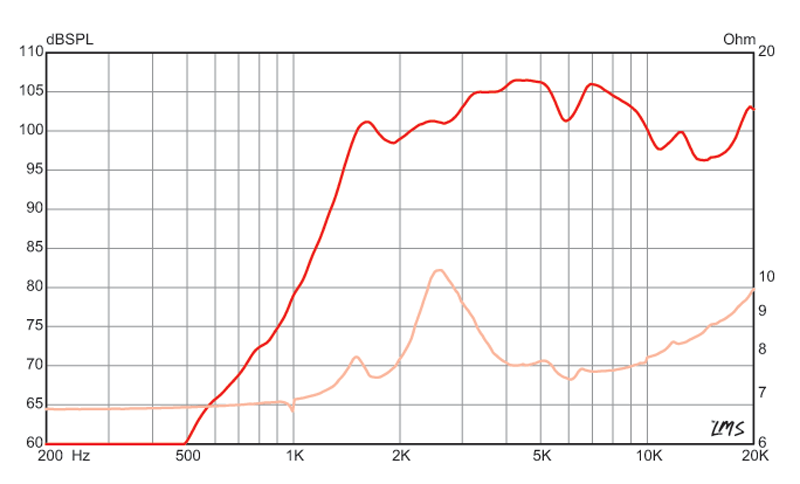

Freq. Response: 3.5 kHZ-20 kHZ
Recommended Min. X-over: 3.5 kHz@12 db/octave
Sensitivity: 104 db 1w/1m
Magnet Weight: 7.75 oz, 220 grams
Voice Coil Diameter: 1", 25.4mm
Diaphragm Material: Phenolic

MOUNTING INFORMATION
Driver Mounting Style: Screw on, 1-3/8x18UNEF
Overall Dimension: 3.43x3.43", 87x87mm
Baffle Hole Diameter: 3.15", 80mm
Number of Mounting Holes: 4
Mounting Hole BCD: 3.94", 100mm
Depth: 2.9", 73.6mm
Net Weight: 1.6 lbs, 727 grams
