JVC KS-AX3205D 4K Ultra HD Smart TV - 55 Inch LED HDTV with Built-in WiFi, HDR, Dolby Vision, Streaming Apps for Netflix, Hulu, Prime Video - Perfect for Living Room, Bedroom, Home Theater

Features:

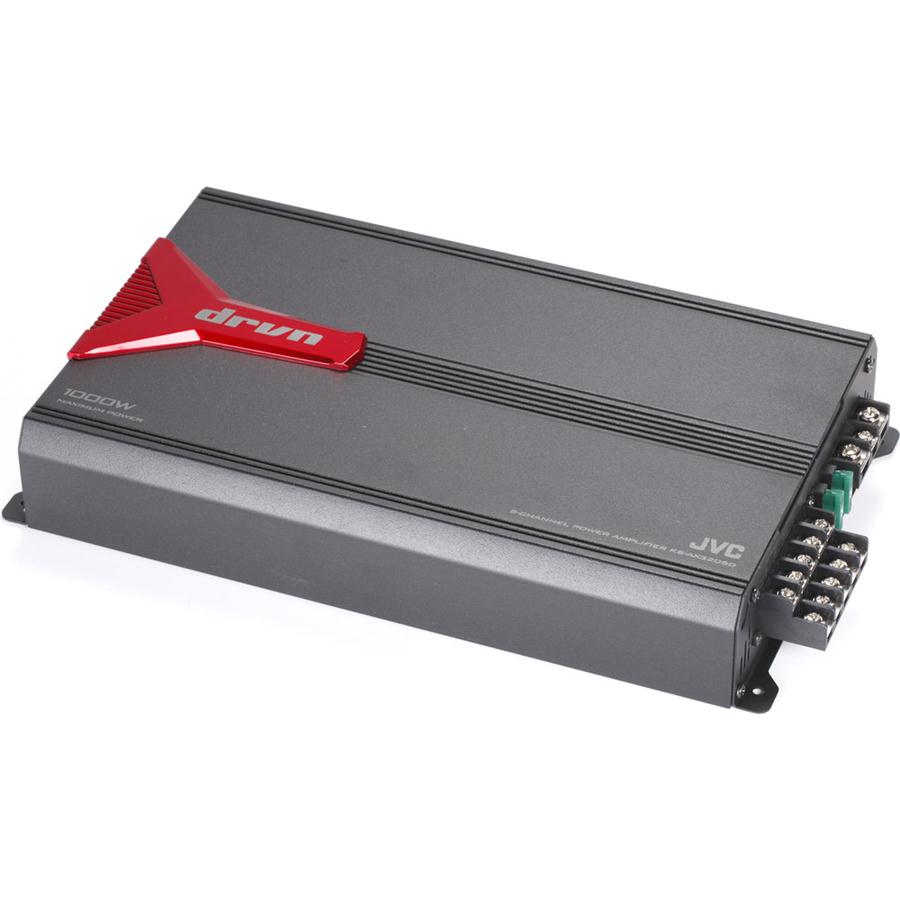

• DRVN Series 5-Channel Class D Car Amplifier
• Channel 1-4 RMS Power Rating:
  • 4 ohms: 50 watts x 4 chan.
  • 2 ohms: 65 watts x 4 chan.
  • Bridged, 4 ohms: 130 watts x 2 chan.
• Subwoofer RMS Power Rating:
  • 4 ohms: 200 watts x 1 chan.
  • 2 ohms: 300 watts x 1 chan.
• Max power output: 1000 watts x 1 chan.
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +18 dB bass boost at 45 Hz)
• Soft start turn-on
• 5/4/3/2 or Mono channel operation
• Speaker-level (high-level) inputs with signal sensing for automatic turn-on
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink
• Input sensitivity:
  • Low level: 200mV-5V
  • High level: 600mV-15V
• Variable high-pass filter (50-200 Hz, 12 dB/octave)
• Variable low-pass filter (50-200 Hz, 18 dB/octave)
• Fixed subsonic filter
• CEA-2006 compliant amplifier
• Also found as: KSAX3205D
• Dimensions: 13-7/16""W x 7-5/16""D x 2-1/8""H

Specifications:

• Amplifier Class: D
• Low-Pass Crossover Frequency: 50-200 Hz
• Low-Pass Slope (dB/octave): 18 dB/octave
• High-Pass Crossover Frequency: 50-200 Hz
• High-Pass Slope (dB/octave): 12 dB/octave
• Bass Boost: 0-18 dB
• Bass Boost Frequency: 45 Hz
• Fan Cooled NoFuse Rating: 60
• Speaker Level Inputs: Harness
• Preamp Outputs: No
• Width (inches): 13-13/16
• Height (inches): 2-1/4
• Depth (inches): 7-3/8
