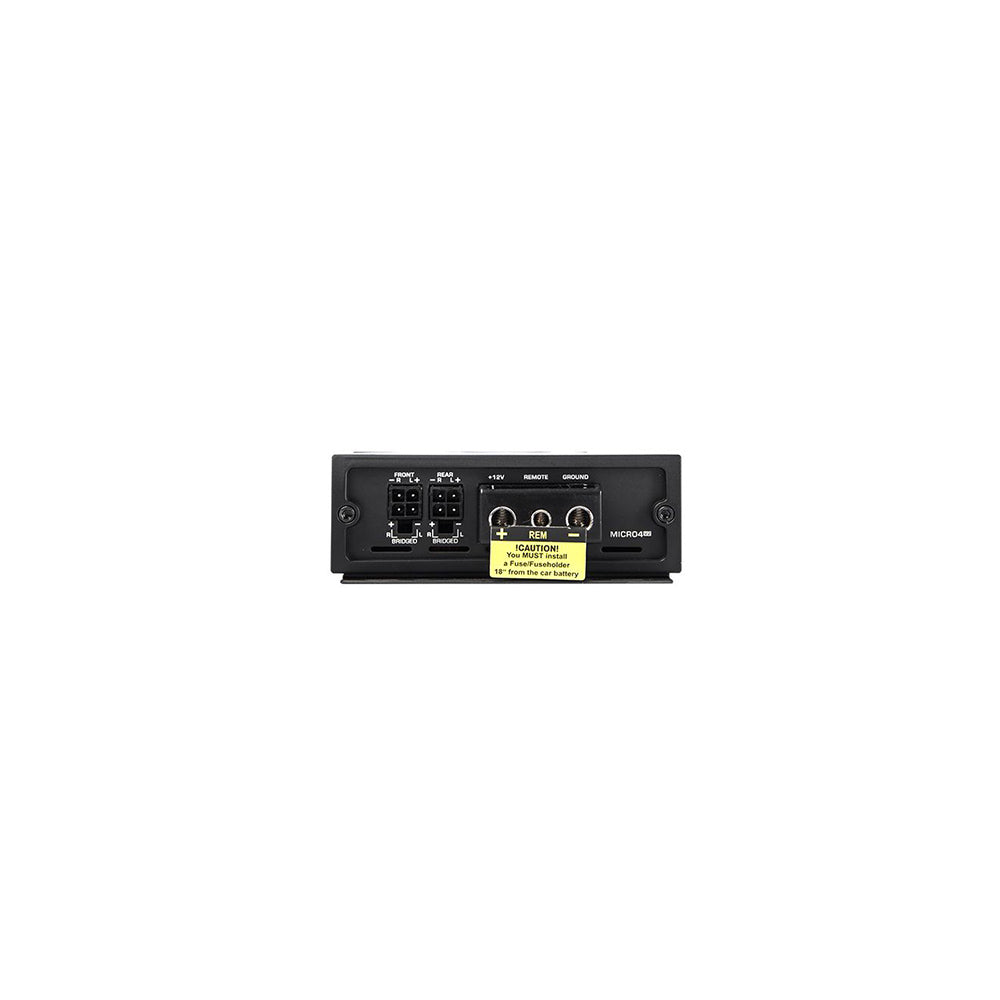

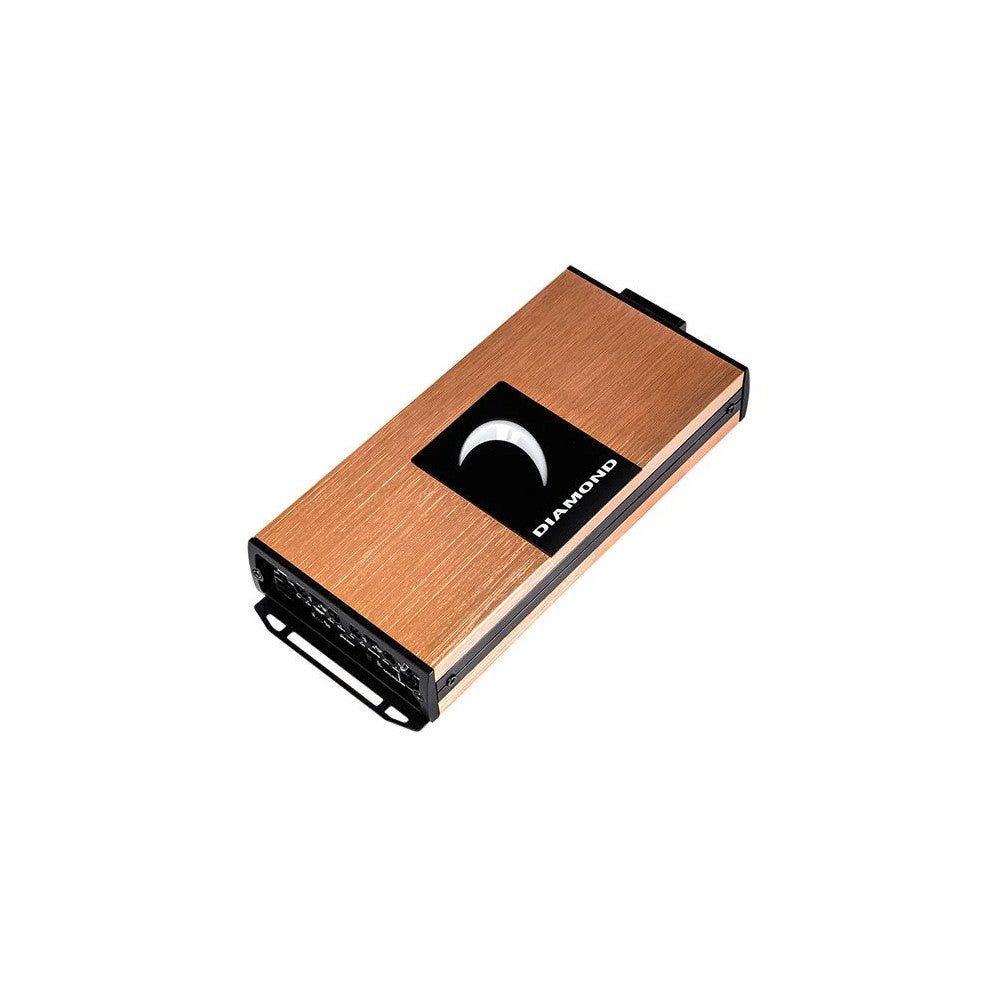

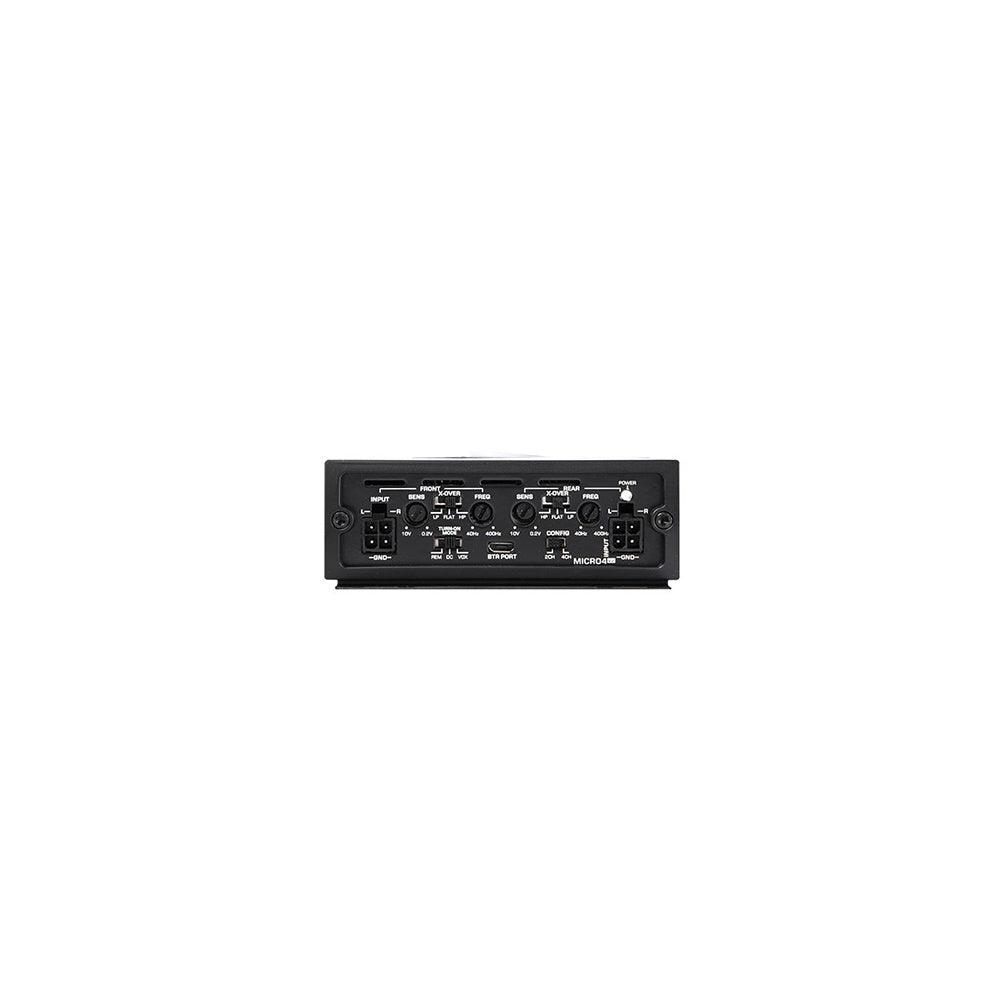

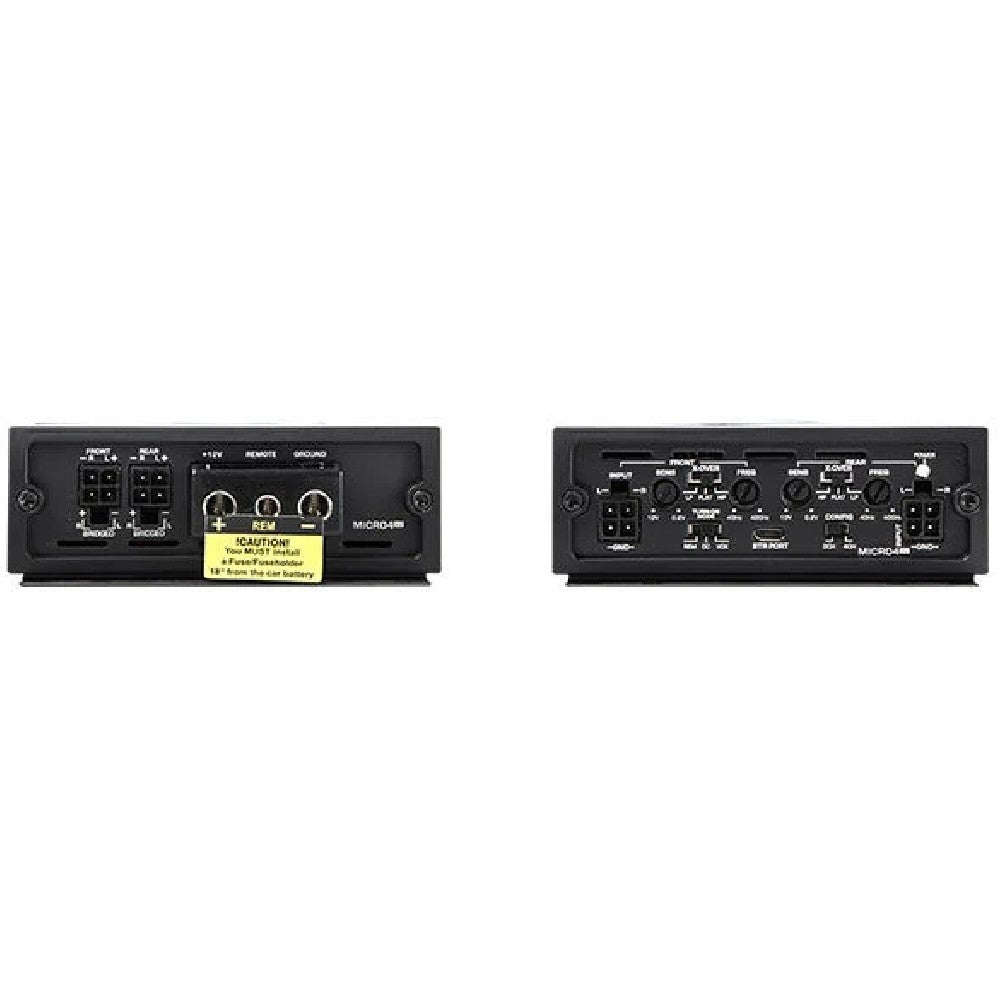

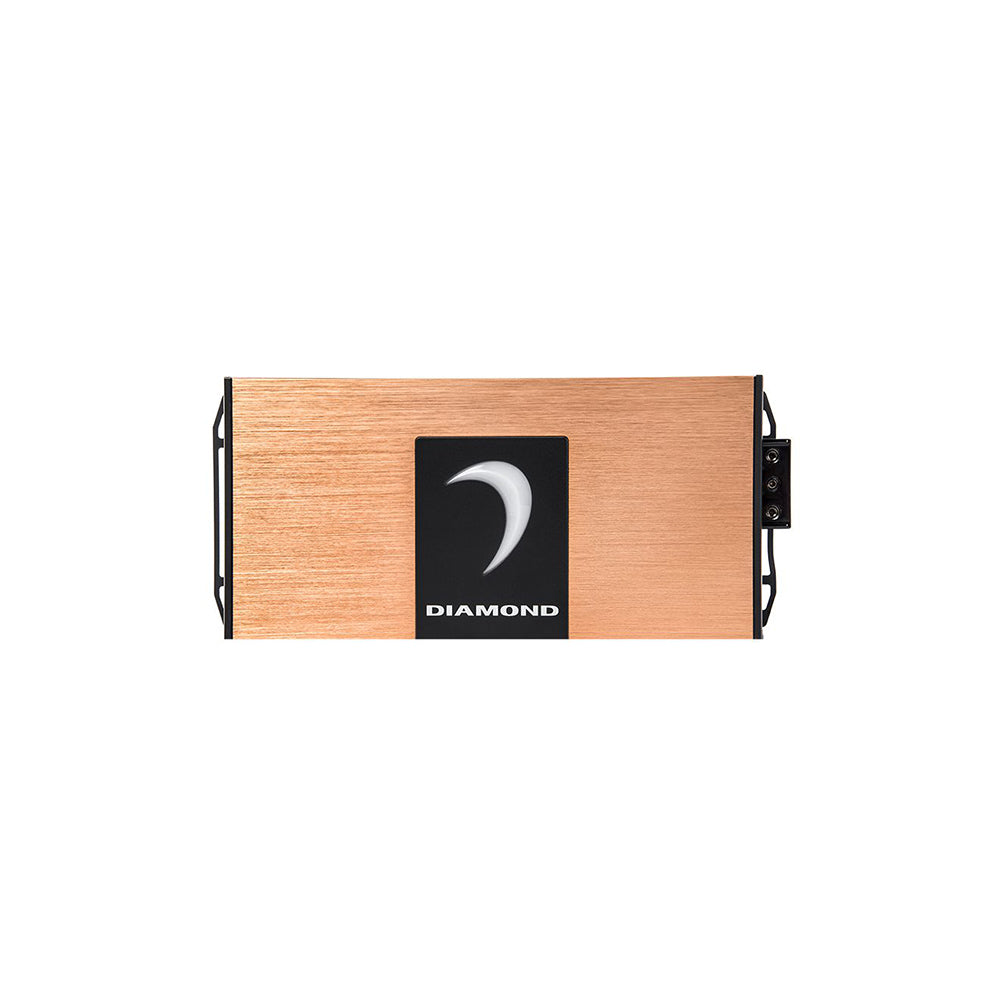

Diamond Audio MICRO4V2 600W Peak Class D 4 Channel Car Amplifier - Compact Power for Car Audio Systems, Perfect for SUVs, Trucks and Custom Car Stereo Upgrades

Features:

• 4-Channel Micro Class-D Amplifier
• Power Output:
  • 80W RMS x 4 @ 4Ω
  • 150W RMS x 4 @ 2Ω
  • 300W RMS x 2 @ 4Ω Bridged
• Ultra-compact, high density aluminum alloy chassis provides superior thermal stability
• Four layer, glass epoxy circuit board for enhanced performance and reliability
• Full Range Class D amplifier technology
• Bridgeable for high power operation (CH1+CH2/CH3+CH4)
• Balanced differential inputs for superior noise rejection
• Input sensitivity from 200mV to 10V accepts Line (RCA) and Speaker level input
• Input selector switch (2 CH / 4 CH)
• Selectable auto-turn-on mode: Signal Sensing (VOX), 12V Remote (REM) and DC offset (DC)
• Fully variable, 12dB per octave, electronic crossovers
• Built-in BTR Port (MICRO-USB) to connect our optional Bluetooth receiver-controller
• Illuminated logo
• Fully variable, 12dB per octave, electronic crossover
• Variable 18dB per octave sub-sonic filter
• Adjustable Bass EQ (45Hz: 0dB to +12dB)
• Wired Remote Level Control included
• THD: 0.5%
• S/N Ratio (A weighted @ 1W): -85dBA
• Low Input Level: 200mV - 10.0V
• Bandwidth(-3dB): 10Hz - 35Hz
• Variable High-Pass: 40Hz - 400Hz
• Variable Low-Pass: 40Hz - 400Hz
• Fuse Ratings - ATC: 40A
• Dimensions: 9.07"L x 4.0"W x 1.46"H

Specifications:

• RMS Power @ 4 ohms: 80 watts x 4 channel

• RMS Power @ 2 ohms: 150 watts x 4 channel

• Bridged RMS Power: 300 watts x 2 channel

• Series: Micro Series

• Amplifier Class: D

• Number of Channels: 4-Channel

• Total RMS Power Output: 600 watts

• Maximum Input Gauge Size: 8 AWG

• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms

• Frequency Response: 20 - 350 Hz

• THD at Rated RMS Power: .5%

• Speaker Level Inputs: Yes

• Preamp Outputs: No

• Built-in Crossover: Low-Pass (LP), High-Pass (HP), Full (AP)

• High-Pass Crossover Frequency: 40 - 400 Hz

• Low-Pass Crossover Frequency: 40 - 400 Hz

• Bass Boost: 0 - 12 dB

• Remote bass/level controller: No

• Total Fuse Rating: 40

• Amp Bluetooth Connectivity: Yes

• Low-Level Input Sensitivity: 0.20 - 10 volts
