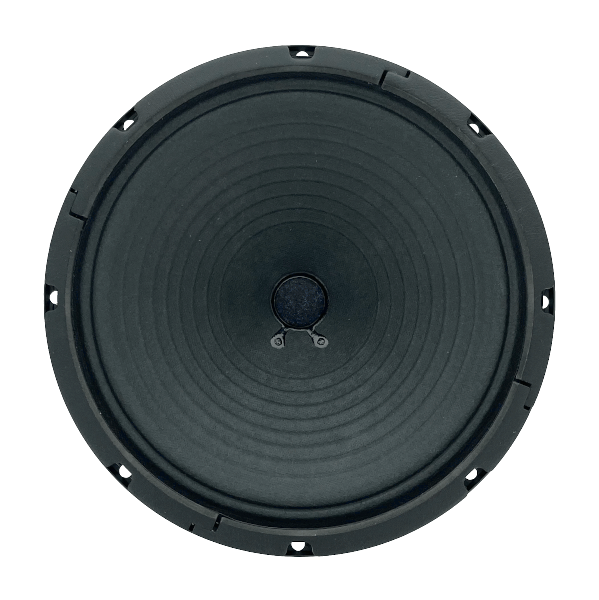

ToneSpeak Leeds 1020 10-Inch 8 Ohm 20W Guitar Speaker for Amplifiers & Cabinets - Perfect for Studio Recording & Live Performances
Free shipping on all orders over $50
7-15 days international
29 people viewing this product right now!
30-day free returns
Secure checkout
17895702
Description
NEVER LET IT BE SAID THAT GUITAR TONE IS DEAD...
Give your listeners a tailored response of a sharp and punchy bottom-end, scooped mids, and soaring highs--keeping you in the fray at the extremes while maintaining a nice sense of sweetness in the middle of your range.
This classic 10" guitar speaker delivers a vintage sound, thanks to an alnico magnet motor that softens the tone without losing the immediacy. In addition, a vintage Kurt Müller paper cone maintains a lush profile, full-bodied sound profile that compliments your playing.
- 10" speaker
- 20 watts, 8 ohm
- 6.8 oz alnico magnet
- Kurt Müller guitar cone
- 1" copper voice coil, Kraft paper former
ToneSpeak guitar speakers are the result of years and years of the deep-dive for the perfect tone. Decades of testing, field experience and conversations with elite tone-chasers have all been poured into these fine products. When you play ToneSpeak, you play the best.
| Brand Name | ToneSpeak |
|---|---|
| Size, Nominal (inch & mm) | 10" (250 mm) |
| Shape of Speaker | Round |
| Speaker Type | Guitar Speaker |
| Application | Musical Instruments |
| Environment | Indoor |
| RoHS Compliant | Yes |
| Nominal Impedance (Z) (Ω) | 8 |
| Rated Power IEC268-5 (W) | 20 Watts |
| Rated Impedance (Ω) | 8 |
| Continuous Power (W) | 20 |
| Program Power (W) | 40 |
| Frequency Range (Hz) | 65 - 6,300 |
| Sensitivity (dB SPL) ¹ | 96 |
| Resonant Frequency (Fs) (Hz) | 112 |
| DC Resistance (Re) (Ω) | 6.20 |
| Voice Coil Inductance (Le) (mH) | 0.35 |
| Mechanical Q Factor (Qms) | 18.38 |
| Electrical Q Factor (Qes) | 1.99 |
| Total Q Factor (Qts) | 1.80 |
| Mechanical Resistance (Rms) (kg/s) | 0.61 |
| Compliance Equivalent Volume (Vas) (L) | 28.27 |
| Suspension Compliance (Cms) (mm/N) | 0.13 |
| Surface Area of Diaphragm (Sd) (cm²) | 397.61 |
| Moving Mass (Mms) (gm) | 15.84 |
| Motor Force Factor (BL) (T•M) | 5.91 |
| Efficiency (η₀) (%) | 1.93 |
| Efficiency Bandwidth Product (EBP) (Fs/Qes) | 56.48 |
| Basket Type | Cold-rolled steel |
| Terminal Size (mm) | 5.2 x 0.5 (Dual lug) |
| Voice Coil Diameter (mm) | 25.4 |
| Voice Coil Wire Material | Copper |
| Voice Coil Former Material | Kraft paper |
| Voice Coil Winding Style | Single Layer |
| Magnet Material | Alnico |
| Magnet Weight (gm) | 192.77 |
| Cone Body Material | Paper composite |
| Cone Surround Material | Paper composite |
| Dust Cap Material | Felt |
| Technical Notes | ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance
|
